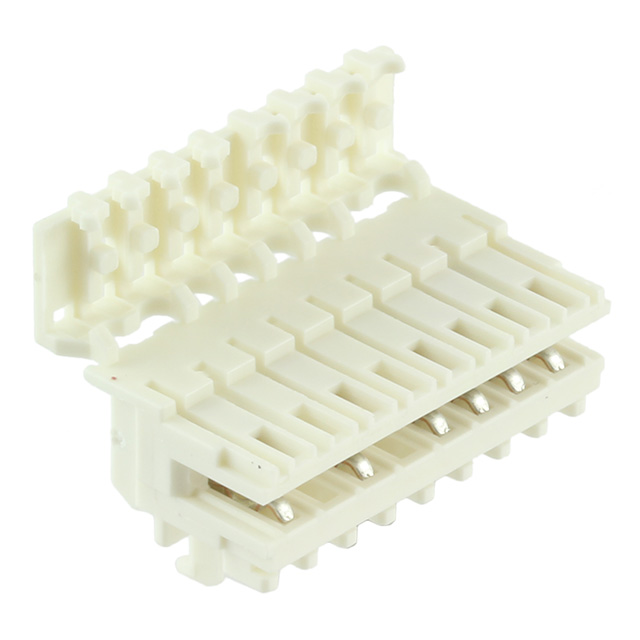

5-1534798-8
Or copy the link below:
- Mfr.Part #
- 5-1534798-8
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 8POS IDC 22-24AWG TIN
- Stock
- 21,796
- In Stock ：
- 21,796
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Free Hanging, Panel Mount
- Contact Finish :
- Tin
- Color :
- Natural
- Contact Plating :
- Tin
- Operating Supply Voltage :
- 250V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Cable Termination :
- IDC
- Number of Contacts :
- 8
- Number of Positions :
- 8
- Height :
- 7.2898mm
- Wire Gauge :
- 22-24 AWG
- Min Operating Temperature :
- -40°C
- Feature :
- Mates to PCB
- Housing Color :
- Natural
- PCB Thickness :
- 1.4986mm
- Wire/Cable Type :
- Discrete
- ELV :
- Compliant
- Wire Gauge (Min) :
- 22 AWG
- Max Operating Temperature :
- 110°C
- Pitch :
- 0.098 2.50mm
- PCB Mounting Orientation :
- RIGHT ANGLE
- Current Rating :
- 2A
- Gender :
- Receptacle
- Orientation :
- RIGHT ANGLE
- Series :
- DuoPlug
- Connector Type :
- Receptacle
- Contact Type :
- Female Blade Socket
- Packaging :
- Bulk
- Wire Gauge (Max) :
- 24 AWG
- Mount :
- Free Hanging
- Contact Current Rating :
- 2A
- Contact Material :
- CuSn
- Preloaded :
- yes
- Mounting Type :
- Free Hanging (In-Line), Right Angle
- Insulation Diameter :
- 1.6 mm
- Circuit Application :
- Signal
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- RoHS Status :
- Non-RoHS Compliant
- Plating Thickness :
- 6μm
- Termination :
- IDC
- Factory Lead Time :
- 22 Weeks
- Number of Rows :
- 1
- Wire Type :
- Discrete
- Published :
- 2010
- Datasheets
- 5-1534798-8
5-1534798-8 datasheet pdf and Rectangular Connectors - Free Hanging, Panel Mount product details from TE Connectivity AMP Connectors stock available at Xinshop
