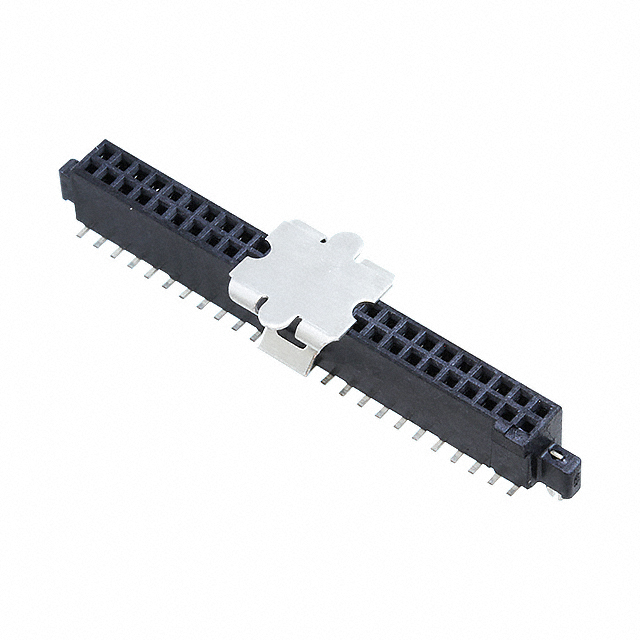

5-147384-5
Or copy the link below:
- Mfr.Part #
- 5-147384-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 50POS 0.05 GOLD SMD
- Stock
- 5
- In Stock ：
- 5
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Receptacles, Female Sockets
- Polarization Key :
- POLARIZED HOUSING
- Number of Positions Loaded :
- All
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Mixed Contacts :
- No
- HTS Code :
- 8536.69.40.40
- Contact Type :
- Female Socket
- DIN Conformance :
- No
- Stack Height (Mating) :
- 6.35mm 8.13mm 9.91mm
- Flammability Rating :
- UL94 V-0
- Operating Temperature :
- -65°C~105°C
- Orientation :
- Vertical
- Mounting Type :
- Surface Mount
- Contact Finish Thickness - Post :
- 150.0μin 3.81μm
- Housing Material :
- Polymer
- Length :
- 36.22mm
- Contact Plating :
- Tin, Gold
- Height :
- 4.7498mm
- Material Flammability Rating :
- UL94 V-0
- Underplate Material :
- Nickel
- Lead Free :
- Lead Free
- UL Flammability Code :
- 94V-0
- ECCN Code :
- EAR99
- Mount :
- Surface Mount
- Max Voltage Rating (AC) :
- 30V
- Row Spacing - Mating :
- 0.050 (1.27mm)
- Termination :
- Solder
- Total Number of Contacts :
- 50
- Contact Resistance :
- 16mOhm
- Contact Material :
- COPPER ALLOY
- ELV :
- Compliant
- IEC Conformance :
- No
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Number of Rows :
- 2
- Current Rating :
- 4A
- Filter Feature :
- No
- Body Depth :
- 0.187 inch
- Published :
- 2006
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Number Of PCB Rows :
- 2
- Reliability :
- COMMERCIAL
- MIL Conformance :
- No
- Contact Shape :
- Square
- Number of Positions :
- 50
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Packaging :
- Tape and Reel (TR)
- Option :
- GENERAL PURPOSE
- Contact Current Rating :
- 4A
- Voltage - Rated :
- 30VAC
- Contact Finish - Mating :
- Gold
- Mating Alignment :
- With
- Series :
- AMPMODU 50/50 Grid
- Pbfree Code :
- yes
- Connector Type :
- Receptacle
- Stackable :
- No
- Mating Contact Pitch :
- 0.05 inch
- Feature :
- Board Lock, Pick and Place
- Current Rating (Amps) :
- 0.5A per Contact
- Plating Thickness :
- 30μin
- RoHS Status :
- RoHS Compliant
- Fastening Type :
- Push-Pull
- Insulation Color :
- Black
- Insulation Height :
- 0.187 4.75mm
- Factory Lead Time :
- 17 Weeks
- Style :
- Board to Board or Cable
- PCB Contact Pattern :
- RECTANGULAR
- Insulation Resistance :
- 5GOhm
- Contact Finish - Post :
- Tin
- Pitch - Mating :
- 0.050 1.27mm
- Dielectric Withstanding Voltage :
- 300VAC V
- Operating Supply Voltage :
- 30V
- Number of Conductors :
- ONE
- Approval Agency :
- CSA
- Datasheets
- 5-147384-5
2 Rows Receptacle Solder Copper Alloy Surface Mount Tape & Reel (TR) Gold Liquid Crystal Polymer (LCP) 50 Positions Female Socket
5-147384-5 Overview
Packaging is in the form of Receptacle.This device has a Surface Mount mounting type.An orange Tape & Reel (TR) case is used to package the product.Specifically, it is one of the products in the AMPMODU 50/50 Grid Series.Several benefits come from the Board Lock, Pick and Place feature.There is a mounting hole at Surface Mount.It runs on 30V voltage.Devices operate at -65°C~105°C operating temperatures.
5-147384-5 Features
AMPMODU 50/50 Grid series
5-147384-5 Applications
There are a lot of TE Connectivity AMP Connectors
5-147384-5 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
