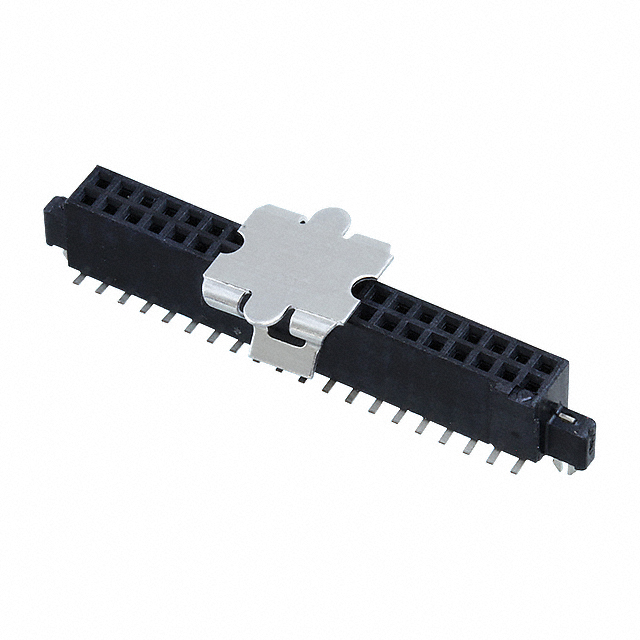

5-147384-4
Or copy the link below:
- Mfr.Part #
- 5-147384-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 40POS 0.05 GOLD SMD
- Stock
- 460
- In Stock ：
- 460
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Receptacles, Female Sockets
- Termination :
- Solder
- Contact Current Rating :
- 4A
- Packaging :
- Tape and Reel (TR)
- Contact Type :
- Female Socket
- Radiation Hardening :
- No
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Row Spacing - Mating :
- 0.050 (1.27mm)
- Voltage - Rated :
- 30VAC
- Factory Lead Time :
- 17 Weeks
- Feature :
- Board Lock, Pick and Place
- Published :
- 2006
- Housing Color :
- Black
- Operating Temperature :
- -65°C~105°C
- Depth :
- 5.71mm
- Insulation Resistance :
- 5GOhm
- Min Operating Temperature :
- -65°C
- Underplate Material :
- Nickel
- Approval Agency :
- CSA
- Mating Alignment :
- With
- Current Rating :
- 4A
- Pitch :
- 1.27mm
- Insulation Height :
- 0.187 4.75mm
- Number of Positions Loaded :
- All
- Style :
- Board to Board or Cable
- Connector Type :
- Receptacle
- Mounting Type :
- Surface Mount
- Contact Material :
- COPPER ALLOY
- Fastening Type :
- Push-Pull
- Contact Finish - Mating :
- Gold
- Current Rating (Amps) :
- 0.5A per Contact
- Stackable :
- No
- Max Voltage Rating (AC) :
- 30V
- Contact Resistance :
- 16mOhm
- Orientation :
- Vertical
- Contact Shape :
- Square
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Mount :
- Surface Mount
- Number of Positions :
- 40
- Material Flammability Rating :
- UL94 V-0
- Height :
- 4.7498mm
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Length :
- 29.87mm
- Color :
- Black
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Finish Thickness - Post :
- 150.0μin 3.81μm
- Stack Height (Mating) :
- 6.35mm 8.13mm 9.91mm
- ELV :
- Compliant
- PCB Mount Retention :
- With
- Number of Rows :
- 2
- Plating :
- Gold
- Flammability Rating :
- UL94 V-0
- Contact Finish - Post :
- Tin
- PCB Mounting Orientation :
- Vertical
- Housing Material :
- Polymer
- Operating Supply Voltage :
- 30V
- Insulation Color :
- Black
- Number of Contacts :
- 40
- Pitch - Mating :
- 0.050 1.27mm
- RoHS Status :
- RoHS Compliant
- Series :
- AMPMODU 50/50 Grid
- Contact Plating :
- Tin, Gold
- Max Operating Temperature :
- 105°C
- Stack Height :
- 4.75mm
- Datasheets
- 5-147384-4
2 Rows Receptacle Solder Copper Alloy Surface Mount Tape & Reel (TR) Gold Liquid Crystal Polymer (LCP) 40 Positions Female Socket
5-147384-4 Overview
Receptacle packaging is included.This device has a mounting type of Surface Mount.We package the product with a Tape & Reel (TR) case.The product is part of the AMPMODU 50/50 Grid Series.If it is to be used, it should be kept at a temperature below 105°C.There must be a minimum temperature of -65°C for this device to operate.This feature makes it more powerful in a number of ways due to its Board Lock, Pick and Place feature.You've got Surface Mount mounted on the part.Memory is operating at 30V volts.This device runs at -65°C~105°C operating temperature.
5-147384-4 Features
AMPMODU 50/50 Grid series
5-147384-4 Applications
There are a lot of TE Connectivity AMP Connectors
5-147384-4 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
