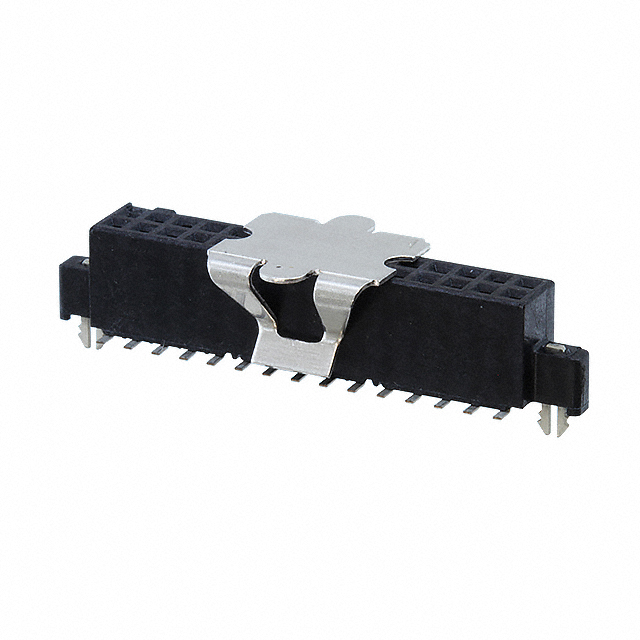

5-147384-3
Or copy the link below:
- Mfr.Part #
- 5-147384-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 30POS 0.05 GOLD SMD
- Stock
- 1,192
- In Stock ：
- 1,192
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Receptacles, Female Sockets
- Insulation Color :
- Black
- Flammability Rating :
- UL94 V-0
- Insulation Resistance :
- 5GOhm
- Pbfree Code :
- yes
- Orientation :
- Vertical
- Underplate Material :
- Nickel
- Operating Temperature :
- -65°C~105°C
- Voltage - Rated :
- 30VAC
- Mount :
- Surface Mount
- Total Number of Contacts :
- 30
- Number Of PCB Rows :
- 2
- Pitch - Mating :
- 0.050 1.27mm
- PCB Contact Pattern :
- RECTANGULAR
- Option :
- GENERAL PURPOSE
- Factory Lead Time :
- 17 Weeks
- Row Spacing - Mating :
- 0.050 (1.27mm)
- Mounting Type :
- Surface Mount
- Length :
- 23.52mm
- Housing Material :
- Polymer
- Max Voltage Rating (AC) :
- 30V
- IEC Conformance :
- No
- Number of Conductors :
- ONE
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Feature :
- Board Lock, Pick and Place
- Operating Supply Voltage :
- 30V
- Stack Height (Mating) :
- 6.35mm 8.13mm 9.91mm
- Fastening Type :
- Push-Pull
- Series :
- AMPMODU 50/50 Grid
- Published :
- 2006
- Current Rating :
- 4A
- Connector Type :
- Receptacle
- Stackable :
- No
- Height :
- 4.7498mm
- Mating Contact Pitch :
- 0.05 inch
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Shape :
- Square
- Contact Type :
- Female Socket
- Style :
- Board to Board or Cable
- Material Flammability Rating :
- UL94 V-0
- MIL Conformance :
- No
- Depth :
- 5.71mm
- Contact Resistance :
- 16mOhm
- Number of Positions :
- 30
- Polarization Key :
- POLARIZED HOUSING
- Number of Positions Loaded :
- All
- Contact Plating :
- Tin, Gold
- Mixed Contacts :
- No
- Filter Feature :
- No
- Reliability :
- COMMERCIAL
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- RoHS Status :
- RoHS Compliant
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- ELV :
- Compliant
- Contact Finish Thickness - Post :
- 150.0μin 3.81μm
- Contact Material :
- COPPER ALLOY
- Current Rating (Amps) :
- 0.5A per Contact
- Packaging :
- Tape and Reel (TR)
- DIN Conformance :
- No
- Contact Current Rating :
- 4A
- Contact Finish - Mating :
- Gold
- UL Flammability Code :
- 94V-0
- Termination :
- Solder
- Contact Finish - Post :
- Tin
- Insulation Height :
- 0.187 4.75mm
- Number of Rows :
- 2
- Approval Agency :
- CSA
- Mating Alignment :
- With
- Datasheets
- 5-147384-3
2 Rows Receptacle Solder Copper Alloy Surface Mount Tape & Reel (TR) Gold Liquid Crystal Polymer (LCP) 30 Positions Female Socket
5-147384-3 Overview
Packaging is Receptacle.Surface Mount is the mounting type.Packaging for the product is carried out via a Tape & Reel (TR) case.As a product of the AMPMODU 50/50 Grid Series, it can be found in this category.With its Board Lock, Pick and Place feature, it is more powerful in many ways.In this case, Surface Mount mounts the part.The memory's operating supply voltage is 30V.The device is operating at -65°C~105°C Operating Temperature.
5-147384-3 Features
AMPMODU 50/50 Grid series
5-147384-3 Applications
There are a lot of TE Connectivity AMP Connectors
5-147384-3 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
