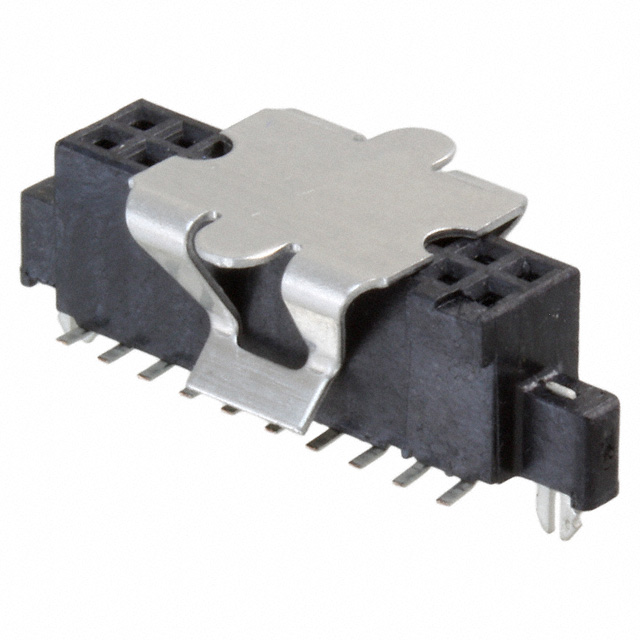

5-147384-2
Or copy the link below:
- Mfr.Part #
- 5-147384-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 20POS 0.05 GOLD SMD
- Stock
- 2,300
- In Stock ：
- 2,300
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Receptacles, Female Sockets
- Plating Thickness :
- 30μin
- Factory Lead Time :
- 17 Weeks
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Filter Feature :
- No
- Contact Material :
- COPPER ALLOY
- Depth :
- 5.03mm
- Mating Alignment :
- With
- Termination :
- Solder
- Height :
- 4.7498mm
- Row Spacing - Mating :
- 0.050 (1.27mm)
- ECCN Code :
- EAR99
- Max Voltage Rating (AC) :
- 30V
- Housing Material :
- Polymer
- Stackable :
- No
- Fastening Type :
- Push-Pull
- Published :
- 2006
- Contact Finish Thickness - Post :
- 150.0μin 3.81μm
- Material Flammability Rating :
- UL94 V-0
- Connector Type :
- Receptacle
- Style :
- Board to Board or Cable
- Reliability :
- COMMERCIAL
- IEC Conformance :
- No
- Insulation Color :
- Black
- Packaging :
- Tape and Reel (TR)
- Mounting Type :
- Surface Mount
- Underplate Material :
- Nickel
- Number of Rows :
- 2
- Contact Resistance :
- 16mOhm
- Current Rating (Amps) :
- 0.5A per Contact
- Contact Type :
- Female Socket
- Mixed Contacts :
- No
- Pbfree Code :
- yes
- PCB Contact Pattern :
- RECTANGULAR
- Feature :
- Board Lock, Pick and Place
- DIN Conformance :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Length :
- 17.17mm
- HTS Code :
- 8536.69.40.40
- Mating Contact Pitch :
- 0.05 inch
- Polarization Key :
- POLARIZED HOUSING
- Number of Positions Loaded :
- All
- Pitch - Mating :
- 0.050 1.27mm
- Operating Supply Voltage :
- 30V
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Contact Current Rating :
- 4A
- Voltage - Rated :
- 30VAC
- Contact Shape :
- Square
- Series :
- AMPMODU 50/50 Grid
- Contact Finish - Mating :
- Gold
- UL Flammability Code :
- 94V-0
- Number of Conductors :
- ONE
- Current Rating :
- 4A
- Dielectric Withstanding Voltage :
- 300VAC V
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- RoHS Status :
- RoHS Compliant
- Number of Positions :
- 20
- Approval Agency :
- CSA
- Mount :
- Surface Mount
- Contact Finish - Post :
- Tin
- ELV :
- Compliant
- Insulation Height :
- 0.187 4.75mm
- Stack Height (Mating) :
- 6.35mm 8.13mm 9.91mm
- Total Number of Contacts :
- 20
- MIL Conformance :
- No
- Operating Temperature :
- -65°C~105°C
- Option :
- GENERAL PURPOSE
- Flammability Rating :
- UL94 V-0
- Number Of PCB Rows :
- 2
- Insulation Resistance :
- 5GOhm
- Orientation :
- Vertical
- Contact Plating :
- Tin, Gold
- Datasheets
- 5-147384-2
2 Rows Receptacle Solder Copper Alloy Surface Mount Tape & Reel (TR) Gold Liquid Crystal Polymer (LCP) 20 Positions Female Socket
5-147384-2 Overview
The packaging contains Receptacle.There is a Surface Mount mounting type for the device.This product is packaged in a case marked Tape & Reel (TR).Product number AMPMODU 50/50 Grid belongs to the AMPMODU 50/50 Grid Series.In many ways, it is more powerful due to its Board Lock, Pick and Place feature.There is a Surface Mount mount on the part.A 30V voltage is used to supply power to this memory.This device operates at a temperature of -65°C~105°C.
5-147384-2 Features
AMPMODU 50/50 Grid series
5-147384-2 Applications
There are a lot of TE Connectivity AMP Connectors
5-147384-2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
