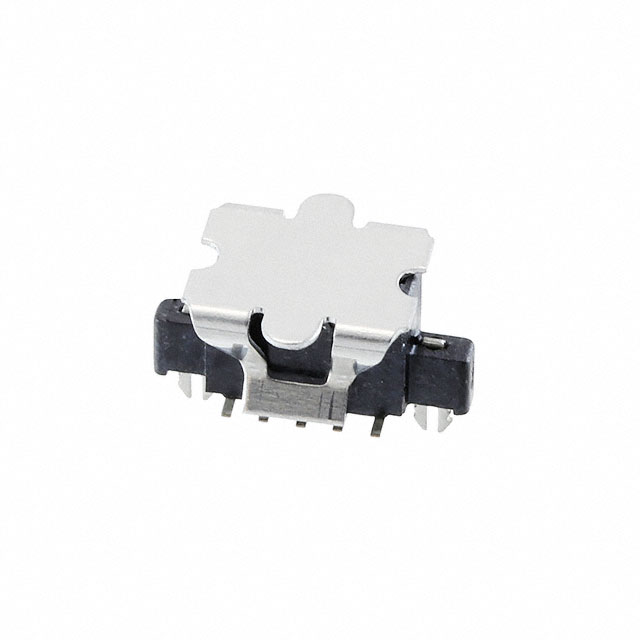

5-147384-1
Or copy the link below:
- Mfr.Part #
- 5-147384-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 10POS 0.05 GOLD SMD
- Stock
- 10
- In Stock ：
- 10
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Receptacles, Female Sockets
- Insulation Resistance :
- 5GOhm
- PCB Mount Retention :
- With
- Operating Temperature :
- -65°C~105°C
- Number of Contacts :
- 10
- Number of Rows :
- 2
- Contact Current Rating :
- 4A
- Factory Lead Time :
- 17 Weeks
- Operating Supply Voltage :
- 30V
- Packaging :
- Tape and Reel (TR)
- PCB Mounting Orientation :
- Vertical
- Contact Resistance :
- 16mOhm
- Contact Shape :
- Square
- Max Voltage Rating (AC) :
- 30V
- Fastening Type :
- Push-Pull
- Mating Alignment :
- With
- Pitch :
- 1.27mm
- Contact Type :
- Female Socket
- Row Spacing - Mating :
- 0.050 (1.27mm)
- Material Flammability Rating :
- UL94 V-0
- Contact Finish Thickness - Post :
- 150.0μin 3.81μm
- Current Rating (Amps) :
- 0.5A per Contact
- Style :
- Board to Board or Cable
- Color :
- Black
- Stack Height (Mating) :
- 6.35mm 8.13mm 9.91mm
- Stackable :
- No
- Height :
- 4.7498mm
- Mounting Type :
- Surface Mount
- Housing Material :
- Polymer
- Gender :
- Receptacle
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Plating :
- Gold
- Radiation Hardening :
- No
- Depth :
- 5.71mm
- Published :
- 2006
- Housing Color :
- Black
- Series :
- AMPMODU 50/50 Grid
- Termination :
- Solder
- Connector Type :
- Receptacle
- Orientation :
- Vertical
- Mount :
- Surface Mount
- Max Operating Temperature :
- 105°C
- Current Rating :
- 4A
- Voltage - Rated :
- 30VAC
- RoHS Status :
- RoHS Compliant
- Number of Positions Loaded :
- All
- Length :
- 10.82mm
- Feature :
- Board Lock, Pick and Place
- Pitch - Mating :
- 0.050 1.27mm
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Flammability Rating :
- UL94 V-0
- ELV :
- Compliant
- Min Operating Temperature :
- -65°C
- Contact Finish - Mating :
- Gold
- Contact Plating :
- Tin, Gold
- Contact Finish - Post :
- Tin
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Underplate Material :
- Nickel
- Approval Agency :
- CSA
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Color :
- Black
- Insulation Height :
- 0.187 4.75mm
- Contact Material :
- COPPER ALLOY
- Number of Positions :
- 10
- Datasheets
- 5-147384-1
2 Rows Receptacle Solder Copper Alloy Surface Mount Tape & Reel (TR) Gold Liquid Crystal Polymer (LCP) 10 Positions Female Socket
5-147384-1 Overview
It comes in a Receptacle package.Surface Mount is the mounting type of the device.We pack the product in a Tape & Reel (TR) case.This is from the AMPMODU 50/50 Grid Series.The ideal temperature for using it is below 105°C.There must be a minimum temperature of -65°C.A number of advantages can be derived from its Board Lock, Pick and Place feature.This part is mounted by Surface Mount. 30V is the operating voltage of this memory.-65°C~105°C Operating Temperature is the default.
5-147384-1 Features
AMPMODU 50/50 Grid series
5-147384-1 Applications
There are a lot of TE Connectivity AMP Connectors
5-147384-1 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
