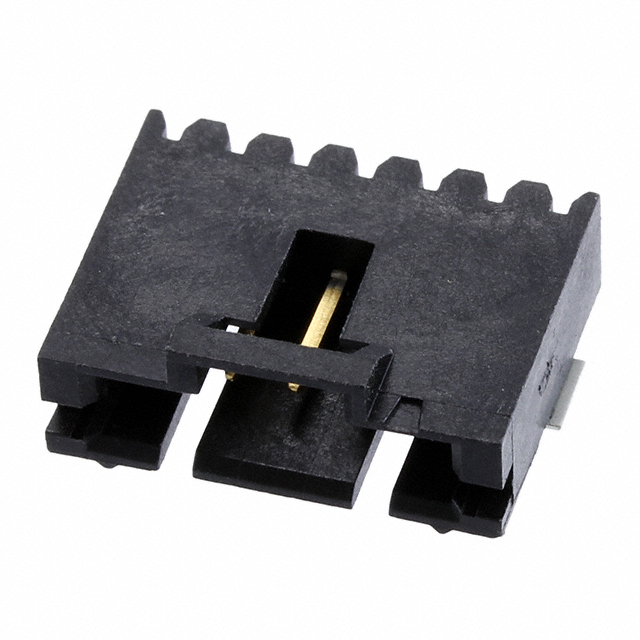

5-147323-4
Or copy the link below:
- Mfr.Part #
- 5-147323-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD R/A 5POS 2.54MM
- Stock
- 140
- In Stock ：
- 140
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Housing Material :
- Thermoplastic
- Applications :
- Automotive, General Purpose, Medical, Telecommunications
- Shrouding :
- Shrouded - 4 Wall
- Feature :
- Board Lock, Keying Slot, Solder Retention
- Contact Shape :
- Square
- Number of Positions :
- 5
- PCB Mount Alignment :
- Without
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Approval Agency :
- CSA
- Termination :
- Solder
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Number of Rows :
- 1
- PCB Mount Retention :
- With
- Mounting Type :
- Surface Mount, Right Angle
- Insulation Material :
- Thermoplastic
- Connector Type :
- Header
- Published :
- 2008
- Housing Color :
- Black
- Operating Temperature :
- -65°C~105°C
- Packaging :
- Tape and Reel (TR)
- PCB Mounting Orientation :
- RIGHT ANGLE
- Contact Material :
- Brass
- Current Rating (Amps) :
- 3A
- Contact Finish - Mating :
- Gold
- Mount :
- Surface Mount
- Number of Positions Loaded :
- All
- Plating Thickness :
- 5.08μm
- Contact Finish - Post :
- Tin
- Insulation Height :
- 0.200 5.08mm
- Series :
- AMPMODU MTE
- Lead Free :
- Lead Free
- Factory Lead Time :
- 16 Weeks
- Min Operating Temperature :
- -65°C
- Contact Resistance :
- 15mOhm
- Insulation Resistance :
- 5GOhm
- Contact Plating :
- Tin, Gold
- Contact Current Rating :
- 3A
- Row Spacing :
- 2.54 mm
- ELV :
- Compliant
- Pitch :
- 2.54mm
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Length - Mating :
- 0.230 5.84mm
- Plating :
- Gold
- Height :
- 13.59mm
- Mating Retention :
- With
- Flammability Rating :
- UL94 V-0
- Radiation Hardening :
- No
- RoHS Status :
- RoHS Compliant
- Contact Gender :
- Male
- Mating Post Length :
- 5.842mm
- Pitch - Mating :
- 0.100 2.54mm
- Max Operating Temperature :
- 105°C
- Insulation Color :
- Black
- Material Flammability Rating :
- UL94 V-0
- Style :
- Board to Board or Cable
- Contact Type :
- Male Pin
- Color :
- Black
- Length - Tail :
- 3.048mm
- Fastening Type :
- Latch Holder
- Number of Contacts :
- 5
- Current Rating :
- 3A
- Orientation :
- RIGHT ANGLE
- Length :
- 17.78mm
- Depth :
- 13.59mm
- Datasheets
- 5-147323-4
AMPMODU MTE Series 1-Row Header Solder Brass Tape & Reel (TR) Surface Mount, Right Angle Gold Thermoplastic 5-Position Board to Board or Cable 0.200 5.08mm Height
5-147323-4 Overview
This product is packaged in a Header carton.Surface Mount, Right Angle is the mounting type for the device.The product is packaged in a Tape & Reel (TR) case.It's part of the AMPMODU MTE Series.Ideally, it should be used when the temperature is below 105°C.Temperature must be -65°C to operate this device.An application for the device could be Automotive, General Purpose, Medical, Telecommunications.Many aspects of its Board Lock, Keying Slot, Solder Retention feature increase its effectiveness.Mounting of the part is based on Surface Mount.It runs at -65°C~105°C Operating Temperature.
