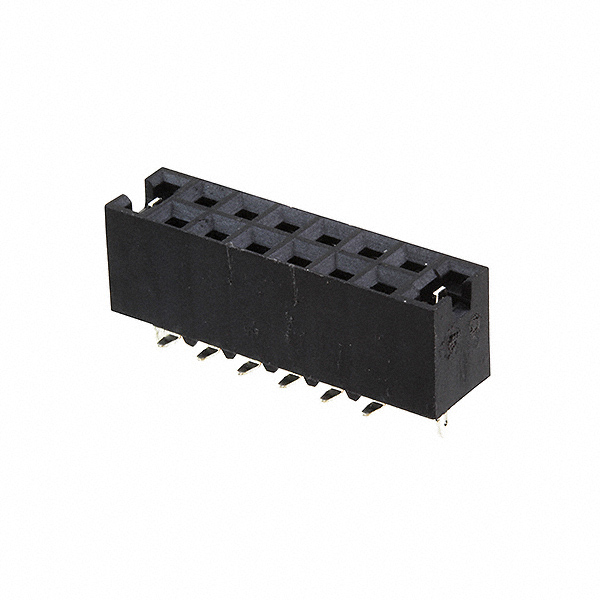

5-147102-6
Or copy the link below:
- Mfr.Part #
- 5-147102-6
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 12POS 0.1 GOLD SMD
- Stock
- 29,770
- In Stock ：
- 29,770
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Receptacles, Female Sockets
- Length :
- 20.32mm
- Pbfree Code :
- yes
- Filter Feature :
- No
- Pitch - Mating :
- 0.100 2.54mm
- DIN Conformance :
- No
- Operating Temperature :
- -65°C~125°C
- Contact Shape :
- Square
- Current Rating (Amps) :
- 2A
- ELV :
- Compliant
- Orientation :
- Vertical
- Lead Free :
- Lead Free
- Contact Finish - Post :
- Tin
- Packaging :
- Tube
- Number of Rows :
- 2
- Housing Color :
- Black
- Style :
- Board to Board or Cable
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Voltage - Rated AC :
- 250V
- Housing Material :
- Polymer
- Feature :
- Board Lock, Pick and Place
- Insulation Material :
- Polyester, Glass Filled
- Contact Finish Thickness - Post :
- 150.0μin 3.81μm
- Mount :
- Surface Mount
- Max Voltage Rating (AC) :
- 250V
- Number of Positions Loaded :
- All
- Published :
- 2011
- Gender :
- FEMALE
- Connector Type :
- Receptacle, Bottom or Top Entry
- Contact Material :
- Phosphor Bronze
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Stackable :
- No
- Contact Finish - Mating :
- Gold
- Total Number of Contacts :
- 12
- Termination :
- Solder
- RoHS Status :
- RoHS Compliant
- Number of Positions :
- 12
- Material Flammability Rating :
- UL94 V-0
- Mounting Type :
- Surface Mount
- Current Rating :
- 3A
- Approval Agency :
- CSA, UL
- Depth :
- 5.03mm
- Fastening Type :
- Push-Pull
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Series :
- AMPMODU Mod IV
- High Temperature Compatible :
- yes
- MIL Conformance :
- No
- IEC Conformance :
- No
- Flammability Rating :
- UL94 V-0
- Contact Type :
- Female Socket
- Contact Resistance :
- 12mOhm
- Factory Lead Time :
- 14 Weeks
- Mixed Contacts :
- No
- Option :
- GENERAL PURPOSE
- Insulation Height :
- 0.265 6.73mm
- Datasheets
- 5-147102-6
2 Rows Receptacle, Bottom or Top Entry Solder Phosphor Bronze Surface Mount Tube Gold Polyester, Glass Filled 12 Positions Female Socket
5-147102-6 Overview
Packaging is Receptacle, Bottom or Top Entry.Surface Mount is the mounting type.Packaging for the product is carried out via a Tube case.As a product of the AMPMODU Mod IV Series, it can be found in this category.With its Board Lock, Pick and Place feature, it is more powerful in many ways.In this case, Surface Mount mounts the part.The device is operating at -65°C~125°C Operating Temperature.
5-147102-6 Features
AMPMODU Mod IV series
5-147102-6 Applications
There are a lot of TE Connectivity AMP Connectors
5-147102-6 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
