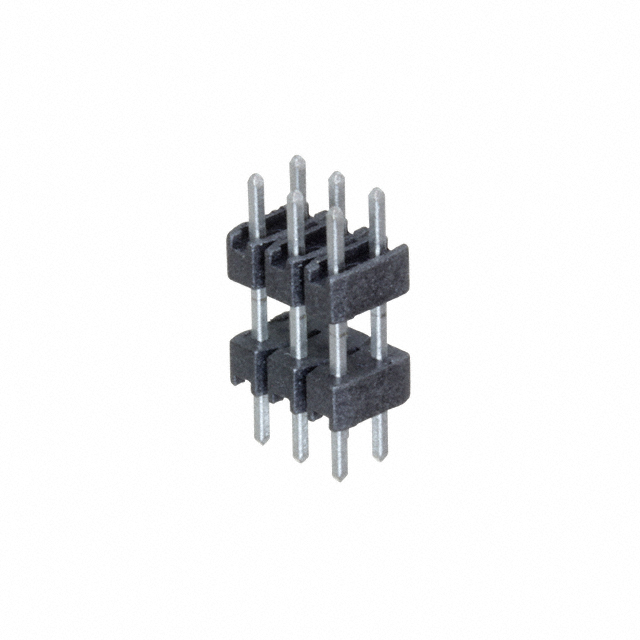

5-146486-3
Or copy the link below:
- Mfr.Part #
- 5-146486-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HDR 6POS 0.1 STACK T/H TIN
- Stock
- 7,382
- In Stock ：
- 7,382
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Board Spacers, Stackers (Board to Board)
- Number of Positions :
- 6
- Length - Post (Mating) :
- 0.123 3.124mm
- Color :
- Black
- Insulation Resistance :
- 5GOhm
- ELV :
- Compliant
- Housing Material :
- Thermoplastic
- Length - Tail :
- 0.110 2.800mm
- Number of Rows :
- 2
- Row Spacing :
- 0.100 (2.54mm)
- Orientation :
- Vertical
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Radiation Hardening :
- No
- PCB Mount Retention :
- Without
- Packaging :
- Bulk
- Min Operating Temperature :
- -65°C
- Stack Height :
- 7.62mm
- Stackable :
- yes
- Series :
- AMPMODU Mod II
- Contact Finish - Post (Mating) :
- Tin
- Flammability Rating :
- UL94 V-0
- Length - Stack Height :
- 0.300 7.620mm
- Published :
- 2011
- PCB Mounting Orientation :
- Vertical
- Pitch :
- 0.100 2.54mm
- Termination :
- Solder
- Plating :
- Tin
- Current Rating :
- 3A
- Contact Current Rating :
- 3A
- Lead Length :
- 13.54mm
- Housing Color :
- Black
- Contact Finish Thickness - Post (Mating) :
- 100.0μin 2.54μm
- Contact Shape :
- Square
- Mounting Type :
- Through Hole
- Mating Post Length :
- 2.7686mm
- Factory Lead Time :
- 17 Weeks
- RoHS Status :
- RoHS Compliant
- Number of Contacts :
- 6
- Max Operating Temperature :
- 125°C
- Length - Overall Pin :
- 0.533 13.538mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Plating :
- Tin
- Connector Type :
- Header, Pin, Plug
- Approval Agency :
- CSA
- Datasheets
- 5-146486-3
AMPMODU Mod II Series Header, Pin, Plug 2 Rows Solder 0.100 2.54mm Bulk Through Hole 6 Positions Black
5-146486-3 Overview
Currently, it is packaged in Header, Pin, Plug.The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the AMPMODU Mod II Series, it belongs to the range of products of that series.A temperature below 125°C is best for using it.The device must run at -65°C degrees.
5-146486-3 Features
AMPMODU Mod II series
5-146486-3 Applications
There are a lot of TE Connectivity AMP Connectors
5-146486-3 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
