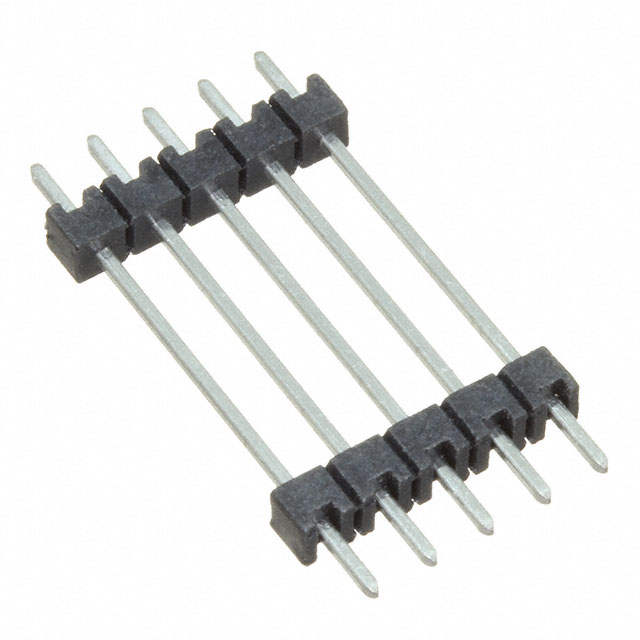

5-146465-5
Or copy the link below:
- Mfr.Part #
- 5-146465-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HDR 5POS 0.1 STACK T/H TIN
- Stock
- 10
- In Stock ：
- 10
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Board Spacers, Stackers (Board to Board)
- Stackable :
- yes
- PCB Mount Retention :
- Without
- Connector Type :
- Header, Pin, Plug
- Number of Positions :
- 5
- Current Rating :
- 3A
- Contact Finish - Post (Mating) :
- Tin
- Plating :
- Tin
- Mounting Type :
- Through Hole
- Min Operating Temperature :
- -65°C
- Length - Overall Pin :
- 0.930 23.622mm
- Contact Finish Thickness - Post (Mating) :
- 100.0μin 2.54μm
- Housing Material :
- Thermoplastic
- Approval Agency :
- CSA
- Max Operating Temperature :
- 125°C
- Mating Post Length :
- 2.7686mm
- Published :
- 2011
- Termination :
- Solder
- Contact Current Rating :
- 3A
- Stack Height :
- 17.78mm
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Length - Stack Height :
- 0.700 17.780mm
- ELV :
- Compliant
- Number of Contacts :
- 5
- Contact Shape :
- Square
- Mount :
- Through Hole
- PCB Mounting Orientation :
- Vertical
- Insulation Resistance :
- 5GOhm
- Radiation Hardening :
- No
- Flammability Rating :
- UL94 V-0
- Lead Length :
- 23.62mm
- Color :
- Black
- Orientation :
- Vertical
- Packaging :
- Bulk
- Series :
- AMPMODU Mod II
- Factory Lead Time :
- 17 Weeks
- Contact Plating :
- Tin
- Number of Rows :
- 1
- Length - Tail :
- 0.110 2.800mm
- RoHS Status :
- RoHS Compliant
- Pitch :
- 0.100 2.54mm
- Housing Color :
- Black
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Length - Post (Mating) :
- 0.120 3.050mm
- Datasheets
- 5-146465-5
AMPMODU Mod II Series Header, Pin, Plug 1 Rows Solder 0.100 2.54mm Bulk Through Hole 5 Positions Black
5-146465-5 Overview
Packaging for this item is Header, Pin, Plug.There is a mounting type of Through Hole for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the AMPMODU Mod II Series.You should use it when it's below 125°C.A minimum temperature of -65°C is required for the operation of this device.
5-146465-5 Features
AMPMODU Mod II series
5-146465-5 Applications
There are a lot of TE Connectivity AMP Connectors
5-146465-5 Rectangular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
