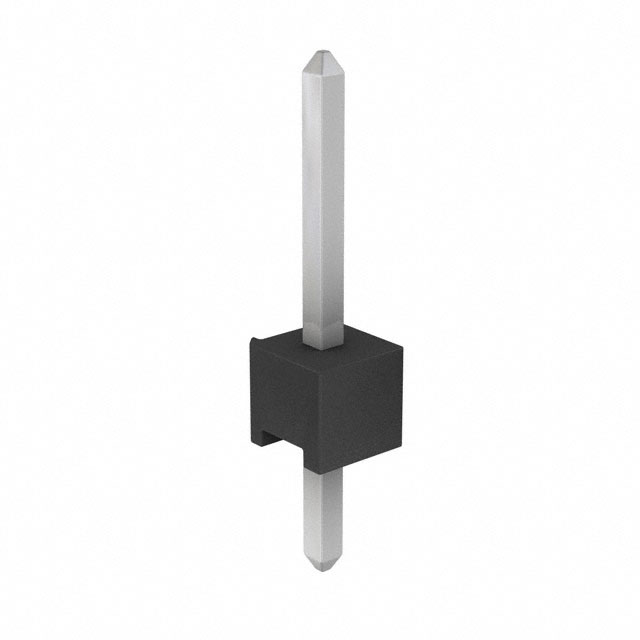

5-146278-1
Or copy the link below:
- Mfr.Part #
- 5-146278-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 1POS
- Stock
- 1,249
- In Stock ：
- 1,249
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Mixed Contacts :
- No
- Filter Feature :
- No
- Lead Free :
- Lead Free
- Fastening Type :
- Push-Pull
- RoHS Status :
- RoHS Compliant
- High Temperature Housing :
- yes
- Contact Length - Mating :
- 0.230 5.84mm
- Operating Temperature :
- -65°C~105°C
- Contact Current Rating :
- 3A
- ELV :
- Compliant
- Lead Length :
- 3.048mm
- Length :
- 2.13mm
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Operating Supply Voltage :
- 30V
- Number of Rows :
- 1
- Option :
- GENERAL PURPOSE
- Flammability Rating :
- UL94 V-0
- Published :
- 2008
- Row Spacing :
- 2.54 mm
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- PCB Thickness :
- 1.5748mm
- Contact Gender :
- Male
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- DIN Conformance :
- No
- Contact Shape :
- Square
- Depth :
- 2.34mm
- MIL Conformance :
- No
- Housing Material :
- Polymer
- Current Rating :
- 3A
- Material Flammability Rating :
- UL94 V-0
- Insulation Height :
- 0.090 2.29mm
- Number of Positions Loaded :
- All
- Mount :
- Through Hole
- Pbfree Code :
- yes
- Mounting Type :
- Through Hole
- IEC Conformance :
- No
- Contact Length - Post :
- 0.120 3.05mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Shrouding :
- Unshrouded
- Contact Type :
- Male Pin
- Connector Type :
- Header, Breakaway
- High Speed Serial Data Connector :
- No
- Number of Positions :
- 1
- Termination :
- Solder
- Orientation :
- Vertical
- Factory Lead Time :
- 17 Weeks
- Series :
- AMPMODU Mod II
- Approval Agency :
- CSA
- Pitch :
- 2.54mm
- Overall Contact Length :
- 0.440 11.18mm
- Housing Color :
- Black
- Contact Material :
- COPPER ALLOY
- Packaging :
- Bulk
- Contact Finish - Mating :
- Tin
- Style :
- Board to Board or Cable
- Mating Post Length :
- 5.842mm
- Contact Finish Thickness - Mating :
- 100.0μin 2.54μm
- Datasheets
- 5-146278-1
AMPMODU Mod II Series 1-Row Header, Breakaway Solder Copper Alloy Bulk Through Hole Tin Liquid Crystal Polymer (LCP) 1-Position Board to Board or Cable 0.090 2.29mm Height
5-146278-1 Overview
The packaging contains Header, Breakaway.There is a Through Hole mounting type for the device.This product is packaged in a case marked Bulk.Product number AMPMODU Mod II belongs to the AMPMODU Mod II Series.There is a Through Hole mount on the part.A 30V voltage is used to supply power to this memory.This device operates at a temperature of -65°C~105°C.
5-146278-1 Features
AMPMODU Mod II series
5-146278-1 Applications
There are a lot of TE Connectivity AMP Connectors
5-146278-1 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
