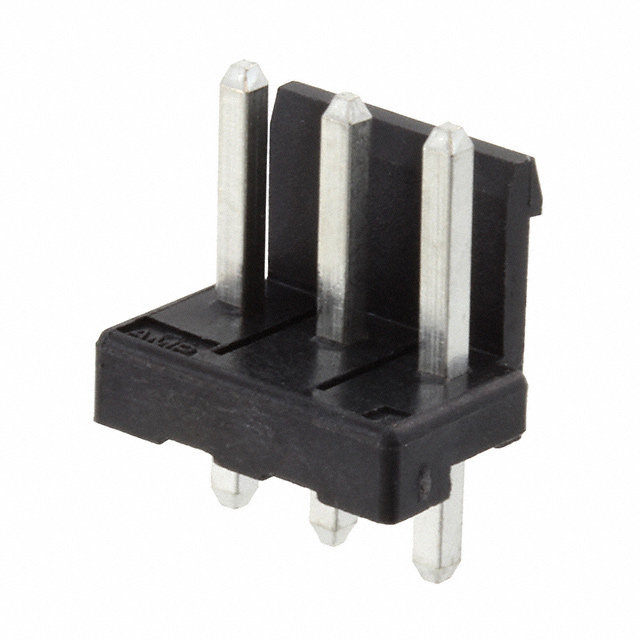

5-1123723-3
Or copy the link below:
- Mfr.Part #
- 5-1123723-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 3POS 3.96MM
- Stock
- 29,272
- In Stock ：
- 29,272
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Fastening Type :
- Friction Lock
- Packaging :
- Bulk
- Insulation Color :
- Black
- Applications :
- General Purpose, Industrial, Lighting
- Operating Temperature :
- -25°C~105°C
- Plating :
- Tin
- Mounting Type :
- Through Hole
- Operating Supply Voltage :
- 250V
- Radiation Hardening :
- No
- Series :
- Economy Power
- Sealable :
- No
- Orientation :
- Vertical
- Plating Thickness :
- 1μm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Current Rating :
- 8A
- Style :
- Board to Cable/Wire
- Contact Length - Post :
- 0.146 3.70mm
- Width :
- 10.7mm
- PCB Mounting Orientation :
- Vertical
- Contact Shape :
- Square
- Mating Post Length :
- 7.62mm
- Housing Material :
- PBT
- Contact Type :
- Male Pin
- Material :
- Nylon
- Circuit Application :
- Power
- Contact Plating :
- Tin
- Overall Contact Length :
- 0.567 14.40mm
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Pitch :
- 3.9624mm
- Color :
- Black
- Number of Power Positions :
- 3
- Mount :
- Through Hole
- Insulation Height :
- 0.118 3.00mm
- Number of Positions :
- 3
- Published :
- 2005
- Number of Contacts :
- 3
- Min Operating Temperature :
- -25°C
- Termination :
- Solder
- Flammability Rating :
- UL94 V-0
- Contact Material :
- Brass
- PCB Thickness :
- 1.6002mm
- Pitch - Mating :
- 0.156 3.96mm
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Contact Finish - Post :
- Tin
- ELV :
- Compliant
- Housing Color :
- Black
- Shrouding :
- Shrouded - 1 Wall
- Number of Rows :
- 1
- Connector Type :
- Header
- Length :
- 11.811mm
- Contact Current Rating :
- 8A
- Current Rating (Amps) :
- 7.5A
- RoHS Status :
- RoHS Compliant
- Contact Length - Mating :
- 0.303 7.70mm
- Material Flammability Rating :
- UL94 V-0
- Contact Finish - Mating :
- Tin
- Factory Lead Time :
- 8 Weeks
- Max Operating Temperature :
- 105°C
- Number of Positions Loaded :
- All
- Contact Retention :
- Without
- Height :
- 8.128mm
- Voltage - Rated :
- 250VAC
- Datasheets
- 5-1123723-3
Economy Power Series 1-Row Header Solder Brass Bulk Through Hole Tin Polybutylene Terephthalate (PBT), Glass Filled 3-Position Board to Cable/Wire 0.118 3.00mm Height
5-1123723-3 Overview
The product is packaged in Header.This device is mounted in the Through Hole position.It has been determined that a Bulk case is necessary to package the product.There is a product in the Economy Power Series.When the temperature is below 105°C, it is best to use it.A minimum operating temperature of -25°C is required for this device.The device could be used for the following application: General Purpose, Industrial, Lighting.Part Through Hole is mounted to the part.250V is the operating supply voltage for this memory.As a result, the device runs at -25°C~105°C Operating Temperature.
5-1123723-3 Features
Economy Power series
5-1123723-3 Applications
There are a lot of TE Connectivity AMP Connectors
5-1123723-3 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
