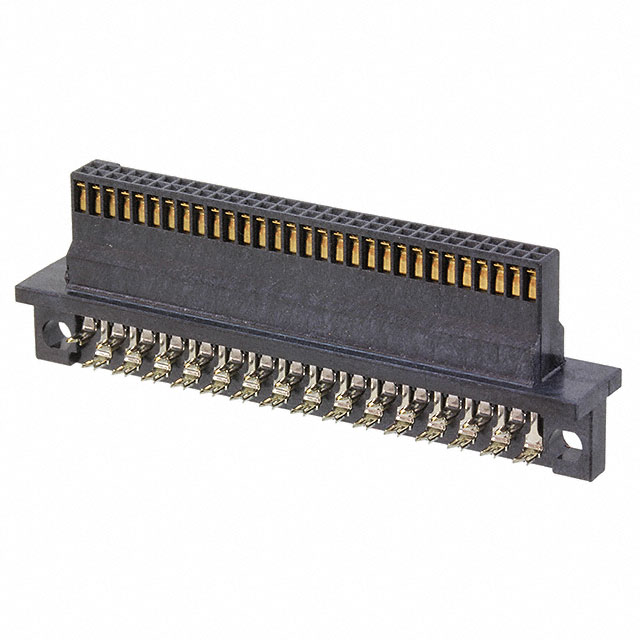

5-104893-6
Or copy the link below:
- Mfr.Part #
- 5-104893-6
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 60POS IDC 28AWG GOLD
- Stock
- 37,135
- In Stock ：
- 37,135
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Free Hanging, Panel Mount
- Pitch :
- 0.050 1.27mm
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Mounting Type :
- Free Hanging (In-Line)
- Filter Feature :
- No
- Contact Plating :
- Tin, Gold
- Contact Finish :
- Gold
- Number of Positions :
- 60
- Factory Lead Time :
- 11 Weeks
- Plating Thickness :
- 1.27μm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- MIL Conformance :
- No
- Contact Type :
- Female Socket
- Mixed Contacts :
- No
- Mating Connector Lock :
- Without
- Wire Type :
- Ribbon Cable
- Packaging :
- Tube
- Termination :
- IDT
- Length :
- 46.43mm
- Housing Material :
- Polymer
- Voltage - Rated :
- 30V
- Color :
- Black
- Total Number of Contacts :
- 60
- Height :
- 15.9512mm
- Row Spacing :
- 0.050 (1.27mm)
- Wire Gauge :
- 28 AWG
- Flammability Rating :
- UL94 V-0
- IEC Conformance :
- No
- Wire/Cable Gauge :
- 28 AWG
- Approval Agency :
- CSA
- Operating Supply Voltage :
- 30V
- Max Voltage Rating (AC) :
- 30V
- Depth :
- 15.94mm
- DIN Conformance :
- No
- Contact Material :
- Bronze
- ELV :
- Compliant
- Max Operating Temperature :
- 105°C
- Series :
- AMPMODU 50/50 Grid
- Insulation Resistance :
- 5GOhm
- Underplate Material :
- Nickel
- Sealable :
- No
- Wire/Cable Type :
- Ribbon
- Cable Termination :
- IDC
- JESD-609 Code :
- e3
- Min Operating Temperature :
- -65°C
- Option :
- GENERAL PURPOSE
- Published :
- 2006
- Feature :
- Closed End
- Contact Resistance :
- 16mOhm
- Width :
- 7.21mm
- Circuit Application :
- Signal
- UL Flammability Code :
- 94V-0
- Connector Type :
- Receptacle
- RoHS Status :
- RoHS Compliant
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Current Rating :
- 500mA
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Orientation :
- Straight
- Pbfree Code :
- yes
- Contact Current Rating :
- 500mA
- Mount :
- Free Hanging
- Number of Rows :
- 2
- Datasheets
- 5-104893-6
