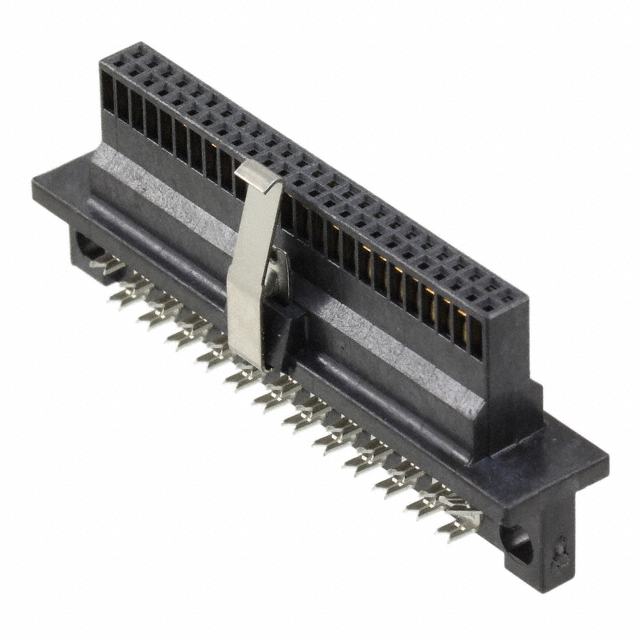

5-104892-5

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Free Hanging, Panel Mount

Circuit Application :

Signal

Sealable :

No

Contact Plating :

Gold, Tin

DIN Conformance :

No

Approval Agency :

CSA

Wire Gauge :

28 AWG

Wire Size (Min) :

30 AWG

Wire/Cable Type :

Ribbon

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Filter Feature :

No

Wire/Cable Gauge :

28 AWG

Reliability :

COMMERCIAL

Plating Thickness :

1.27μm

Underplate Material :

Nickel

Current Rating :

500mA

Contact Finish :

Gold

ELV :

Compliant

Insulation Resistance :

5GOhm

ECCN Code :

EAR99

Depth :

17.56mm

Mixed Contacts :

No

Option :

GENERAL PURPOSE

Additional Feature :

LATCHED

Max Voltage Rating (AC) :

30V

Housing Material :

Thermoplastic

Number of Rows :

2

IEC Conformance :

No

Mounting Type :

Free Hanging (In-Line)

Orientation :

Straight

Packaging :

Tube

Length :

40.08mm

Voltage - Rated :

30V

Width :

7.21mm

Wire Type :

Ribbon Cable

MIL Conformance :

No

Dielectric Withstanding Voltage :

300VAC V

Max Operating Temperature :

105°C

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Type :

Female Socket

Factory Lead Time :

11 Weeks

Total Number of Contacts :

50

Number of Positions :

50

Fastening Type :

Latch Lock

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Mount :

Free Hanging

Contact Material :

Bronze

Height :

17.5514mm

Pbfree Code :

yes

UL Flammability Code :

94V-0

Cable Termination :

IDC

Row Spacing :

0.050 (1.27mm)

Polarization Key :

POLARIZED HOUSING

Pitch :

0.050 1.27mm

Termination :

IDT

Min Operating Temperature :

-65°C

Connector Type :

Receptacle

HTS Code :

8536.69.40.40

Contact Resistance :

25mOhm

Series :

AMPMODU 50/50 Grid

Color :

Black

Mating Connector Lock :

With

Operating Supply Voltage :

30V

Published :

2006

RoHS Status :

RoHS Compliant

Flammability Rating :

UL94 V-0

Contact Finish Thickness :

30.0μin 0.76μm

Contact Current Rating :

500mA

JESD-609 Code :

e3
