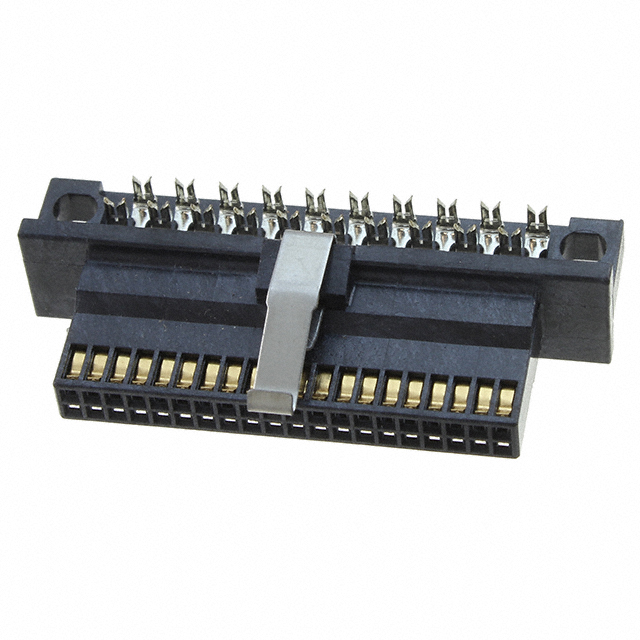

5-104892-4
Or copy the link below:
- Mfr.Part #
- 5-104892-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 40POS IDC 28AWG GOLD
- Stock
- 534
- In Stock ：
- 534
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Free Hanging, Panel Mount
- Packaging :
- Tube
- Contact Type :
- Female Socket
- Color :
- Black
- Wire Gauge :
- 28 AWG
- Mating Connector Lock :
- With
- Contact Plating :
- Gold, Tin
- Number of Rows :
- 2
- Current Rating :
- 500mA
- Mount :
- Cable, Free Hanging
- Number of Positions :
- 40
- Housing Material :
- Thermoplastic
- RoHS Status :
- RoHS Compliant
- Approval Agency :
- CSA
- Height :
- 17.5514mm
- Row Spacing :
- 0.050 (1.27mm)
- Wire Type :
- Ribbon Cable
- Operating Supply Voltage :
- 30V
- Insulation Resistance :
- 5GOhm
- Width :
- 7.21mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Factory Lead Time :
- 11 Weeks
- Series :
- AMPMODU 50/50 Grid
- Housing Color :
- Black
- Connector Type :
- Receptacle
- Underplate Material :
- Nickel
- Plating Thickness :
- 1.27μm
- Contact Finish :
- Gold
- Sealable :
- No
- Cable Termination :
- IDC
- ELV :
- Compliant
- Depth :
- 17.56mm
- Contact Material :
- Bronze
- Published :
- 2006
- Circuit Application :
- Signal
- Wire/Cable Type :
- Ribbon
- Orientation :
- Straight
- Contact Current Rating :
- 500mA
- Termination :
- IDT
- Voltage - Rated AC :
- 30V
- Number of Contacts :
- 40
- Min Operating Temperature :
- -65°C
- Lead Free :
- Lead Free
- Radiation Hardening :
- No
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Max Voltage Rating (AC) :
- 30V
- Contact Resistance :
- 25mOhm
- Fastening Type :
- Latch Lock
- Mounting Type :
- Free Hanging (In-Line)
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Gender :
- Receptacle
- Pitch :
- 0.050 1.27mm
- Max Operating Temperature :
- 105°C
- Length :
- 33.73mm
- Flammability Rating :
- UL94 V-0
- Wire/Cable Gauge :
- 28 AWG
- Datasheets
- 5-104892-4
5-104892-4 datasheet pdf and Rectangular Connectors - Free Hanging, Panel Mount product details from TE Connectivity AMP Connectors stock available at Xinshop
