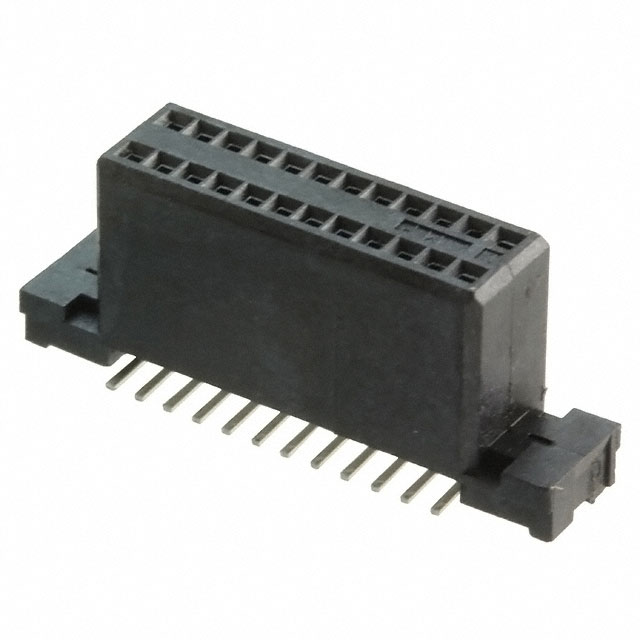

5-104550-3

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Receptacles, Female Sockets

Stack Height (Mating) :

11.94mm 13.08mm

Approval Agency :

CSA

PCB Mount Retention :

With

PCB Thickness :

1.57mm

Contact Resistance :

15mOhm

Durability :

150 Cycles

JESD-609 Code :

e3

ELV :

Compliant

UL Flammability Code :

94V-0

Contact Material :

Phosphor Bronze

Operating Temperature :

-65°C~105°C

Style :

Board to Board

Reliability :

COMMERCIAL

Material Flammability Rating :

UL94 V-0

Total Number of Contacts :

24

Operating Supply Voltage :

30V

Number Of PCB Rows :

2

Series :

AMPMODU System 50

Rated Current (Signal) :

3.6A

IEC Conformance :

No

Height :

9.398mm

Mating Contact Pitch :

0.05 inch

Insulation Resistance :

5GOhm

Contact Finish Thickness - Post :

150.0μin 3.81μm

Contact Finish - Mating :

Gold

Connector Type :

Receptacle

Published :

2006

Factory Lead Time :

19 Weeks

RoHS Status :

RoHS Compliant

Polarization Key :

POLARIZED HOUSING

Feature :

Board Lock

Contact Finish Thickness - Mating :

30.0μin 0.76μm

Row Spacing - Mating :

0.100 (2.54mm)

Length :

22.71mm

Orientation :

Vertical

Housing Material :

Thermoplastic

Dielectric Withstanding Voltage :

500VAC V

Pbfree Code :

yes

Housing Color :

Black

Packaging :

Tube

Voltage - Rated :

30VAC

Insulation Height :

0.370 9.40mm

Filter Feature :

No

Contact Shape :

Square

PCB Contact Row Spacing :

3.81 mm

Insulation Material :

Polyphthalamide (PPA)

Termination :

Solder

Number of Positions Loaded :

All

Number of Conductors :

ONE

Insertion Force-Max :

1.39 N

Number of Rows :

2

Pitch - Mating :

0.050 1.27mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Type :

Female Socket

Depth :

5.02mm

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Fastening Type :

Push-Pull

PCB Contact Pattern :

RECTANGULAR

Body Breadth :

0.198 inch

Reference Standard :

UL

Mount :

Surface Mount

Number of Positions :

24

MIL Conformance :

No

Plating Thickness :

30μin

Mixed Contacts :

No

Mounting Type :

Surface Mount

Contact Finish - Post :

Tin

Option :

GENERAL PURPOSE

Max Voltage Rating (AC) :

30V

Stackable :

No

DIN Conformance :

No

Flammability Rating :

UL94 V-0
