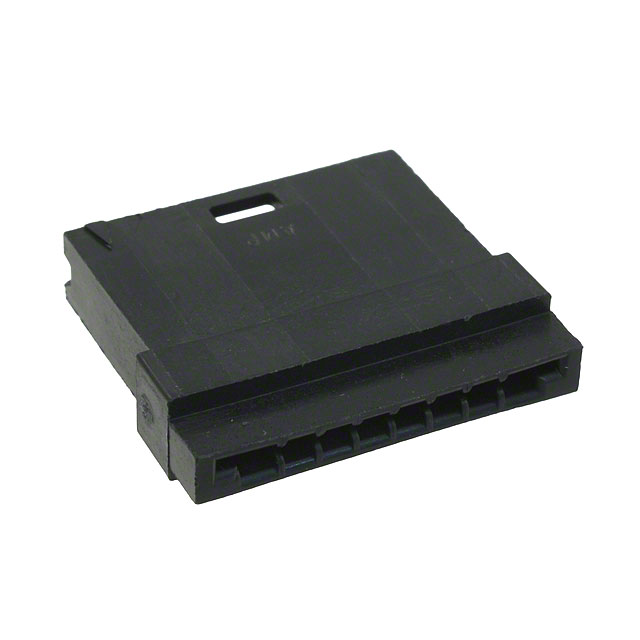

485893-6

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

FFC, FPC (Flat Flexible) Connector Housings

MIL Conformance :

No

Housing Color :

Black

RoHS Status :

RoHS Compliant

Packaging :

Bulk

Operating Temperature :

-65°C~105°C

Insulation Resistance :

5GOhm

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

IEC Conformance :

No

Contact Design :

PREASSEM CONN

Factory Lead Time :

9 Weeks

DIN Conformance :

No

Mixed Contacts :

No

Wire/Cable Type :

Flat Flex

UL Flammability Code :

94V-0

Note :

Contacts Not Included

Current Rating (Amps) :

1.5A

ELV :

Compliant

Published :

2008

Sealable :

No

Flat Flex Type :

FFC, Discrete Wire

Body Breadth :

0.25 inch

Filter Feature :

No

Depth :

23.62mm

Operating Supply Voltage :

300V

Length :

26.67mm

Housing Material :

Thermoplastic

Mount :

Cable, Free Hanging

Current Rating :

2A

Orientation :

Straight

Termination :

CABLE

Locking Feature :

Detent Lock

Reliability :

COMMERCIAL

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Pattern :

RECTANGULAR

Material Flammability Rating :

UL94 V-0

Number of Rows :

1

Flammability Rating :

UL94 V-0

Reference Standard :

UL

Wire Gauge :

22-32 AWG

Total Number of Contacts :

8

Pitch :

0.100 2.54mm

Connector Type :

Housing for Male Contacts

Gender :

Male

Body/Shell Style :

Receptacle

Contact Style :

SQ PIN-SKT

Number of Positions :

8

Mating Alignment :

With

Polarization Key :

POLARIZED HOUSING

Circuit Application :

Signal

FFC, FCB Thickness :

0.05-0.13mm

Insulation Diameter :

0.025 ~ 0.056 (0.64mm ~ 1.42mm)

Pbfree Code :

yes

Option :

GENERAL PURPOSE
