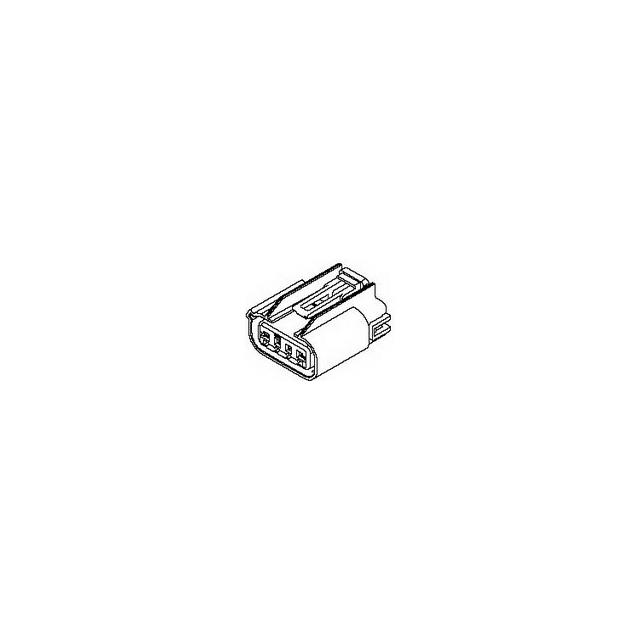

46064-0032

Manufacturer :

Molex

Product Category :

Rectangular Connector Housings

Packaging :

Bag

Product Category :

Headers and Wire Housings

Manufacturer :

Molex

Product Status :

Active

RoHS :

Details

Housing Material :

Polyester

Number of Rows :

1 Row

Product :

Wire Housings

Gender :

RCP

Product Depth (mm) :

16.5(mm)

Pbfree Code :

yes

Product Type :

Headers and Wire Housings

Number of Contacts :

2(POS)

Tradename :

Mini-Fit H2O

Termination Style :

Crimp

Pitch (mm) :

4.2(mm)

Reach Compliance Code :

Compliant

Brand :

Molex

Body Orientation :

Straight

Mounting Style :

Cable Mount / Free Hanging

Number of Positions :

2 Position

Current Rating :

9 A

Product Height (mm) :

27.8(mm)

Maximum Operating Temperature :

+ 105 C

Connector Type :

INTERCONNECTION DEVICE

Series :

*

Package :

Bag

Wire Gauge :

20 AWG to 18 AWG

Flammability Rating :

UL 94 V-0

Type :

Housing

Operating Temp Range :

-40C to 105C

Contact Gender :

Socket (Female)

Subcategory :

Headers and Wire Housings

Current Rating (Max) :

9/Contact(A)

Housing Color :

Black

Minimum Operating Temperature :

- 40 C

Pitch :

4.2 mm

Number of Contact Rows :

1
