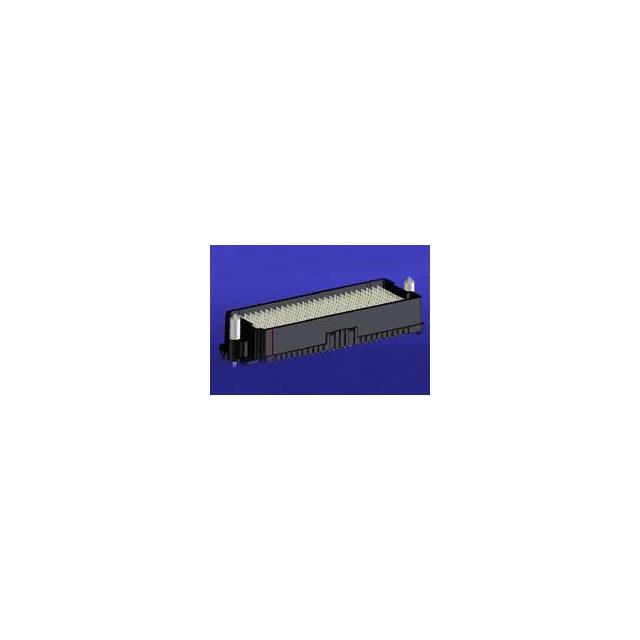

45830-0207

Manufacturer :

Molex

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Contact Pattern :

RECTANGULAR

Contact Resistance :

13.5 mΩ

Mounting Style :

Surface Mount

Operating Temp Range :

-55C to 105C

Insertion Force-Max :

.4448 N

Termination :

Solder

Pitch (mm) :

1.2(mm)

Min Operating Temperature :

-55 °C

Subcategory :

Headers and Edge Type Connectors

Voltage Rating :

250 VAC

Body Breadth :

0.885 inch

Type :

Backplane

Package :

Box

PCB Contact Pattern :

RECTANGULAR

Housing Color :

Black

Termination Method :

Solder

Base/Housing Material :

LCP (Liquid Crystal Polymer)

Plating Thickness :

30u inch

Pin Count :

91

Withdrawl Force-Min :

.2224 N

Insulator Color :

Black

Polarization Key :

POLARIZED HOUSING

Product Length :

30.6 mm

Mounting Type :

BOARD

Body Depth :

0.41 inch

Mounting Option 1 :

Guide Pin

Number of Contact Rows :

7

Number of Contacts :

91 POS

HTS Code :

8536.69.40.40

Reference Standard :

UL, CSA

Reach Compliance Code :

Compliant

Orientation :

Vertical

Total Number of Contacts :

91

Country of Origin :

US

Rated Current (Signal) :

2 A

Reliability :

COMMERCIAL

Plating :

Tin

Durability :

100 Cycles

Length :

30.6 mm

JESD-609 Code :

e3

Manufacturer :

Molex

Insulation Resistance :

5000000000 Ω

Board Mounting Option :

PEG

Body/Shell Style :

PLUG

Housing Material :

Polymer

Max Voltage Rating (AC) :

250 V

Series :

*

Halogen Free :

Low Halogen

Connector Type :

BOARD CONNECTOR

Glow Wire Compliant :

Non-Compliant

Product Status :

Active

Contact Finish Termination :

Tin (Sn) - with Nickel (Ni) barrier

Product Depth (mm) :

22.5(mm)

Mating Contact Pitch :

0.079 inch

RoHS :

Compliant

ECCN Code :

EAR99

Dielectric Withstanding Voltage :

500VDC V

Number of Circuits :

91

Contact Style :

SQ PIN-SKT

Mounting :

Surface Mount

Pitch :

2.0000 mm

Terminal Pitch :

1.9812 mm

Current Rating (Max) :

2/Contact(A)

Mount :

Surface Mount

Mounting Option 2 :

LOCKING

Max Operating Temperature :

105 °C

PCB Contact Row Spacing :

1.9812 mm

Termination Type :

Solder

Number of Pins :

91

Contact Gender :

Male

Operating Temperature :

-55 to 105 °C

Number Of PCB Rows :

13

Contact Material :

COPPER ALLOY

Gender :

PLUG

Factory Lead Time :

16 Weeks

Body Orientation :

Straight

Number of Rows :

7

Mating Contact Row Spacing :

0.078 inch

Packaging :

Tray

Voltage Rating Max :

250VAC

Contact Plating :

Gold
