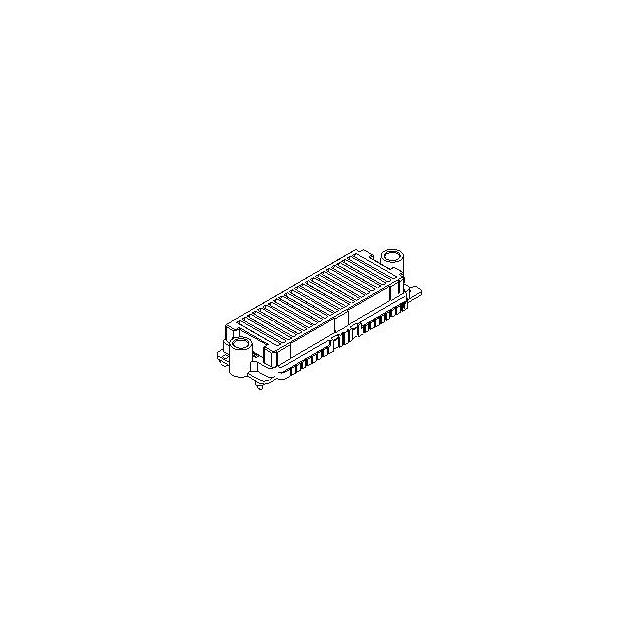

45802-0011
Or copy the link below:
- Mfr.Part #
- 45802-0011
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- 1.20MM BY 2.00MM PITCH HD MEZZ R
- Stock
- 106
- In Stock ：
- 106
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Arrays, Edge Type, Mezzanine (Board to Board)
- Country of Origin :
- US
- Packaging :
- Tray
- Operating Temp Range :
- -55C to 105C
- MIL Conformance :
- No
- Housing Material :
- Thermoplastic
- Series :
- *
- Package :
- Box
- Option :
- GENERAL PURPOSE
- Pitch :
- 2 mm
- RoHS :
- Non-Compliant
- Contact Plating :
- Gold Over Nickel
- Contact Gender :
- FEMALE
- Pitch (mm) :
- 2(mm)
- Contact Finish Termination :
- GOLD (30)/TIN (98) OVER NICKEL
- Body Orientation :
- Straight
- Termination Type :
- Solder
- Orientation :
- Vertical
- Termination Method :
- Solder
- Manufacturer Lifecycle Status :
- Obsolete (Last Updated: 2 years ago)
- Reach Compliance Code :
- Unknown
- JESD-609 Code :
- e4/e3
- Contact Resistance Max :
- 13.5(mohm)
- Lifecycle Status :
- Obsolete (Last Updated: 2 years ago)
- Product Status :
- Active
- Body/Shell Style :
- Receptacle
- Connector Type :
- BOARD STACKING CONNECTOR
- Current Rating (Max) :
- 2/Contact(A)
- Number of Contact Rows :
- 11
- Current Rating :
- 40 A
- Terminal Pitch :
- 2 mm
- Voltage Rating Max :
- 250VAC
- Product Height (mm) :
- 10.51(mm)
- Number of Positions :
- 143
- DIN Conformance :
- No
- Mounting Style :
- Surface Mount
- Total Number of Contacts :
- 143
- Mixed Contacts :
- No
- Number of Circuits :
- 8
- Mounting Type :
- BOARD
- Product Depth (mm) :
- 22.5(mm)
- Voltage Rating (AC) :
- 250 V
- Housing Color :
- Black
- IEC Conformance :
- No
- Contact Material :
- NOT SPECIFIED
- Number of Rows :
- 11
- Filter Feature :
- No
- Gender :
- RCP
- Product Length (mm) :
- 39.89(mm)
- Termination :
- SMD/SMT
- Number of Contacts :
- 134(POS)
- Type :
- Hard Metric
- Manufacturer :
- Molex
- Datasheets
- 45802-0011
