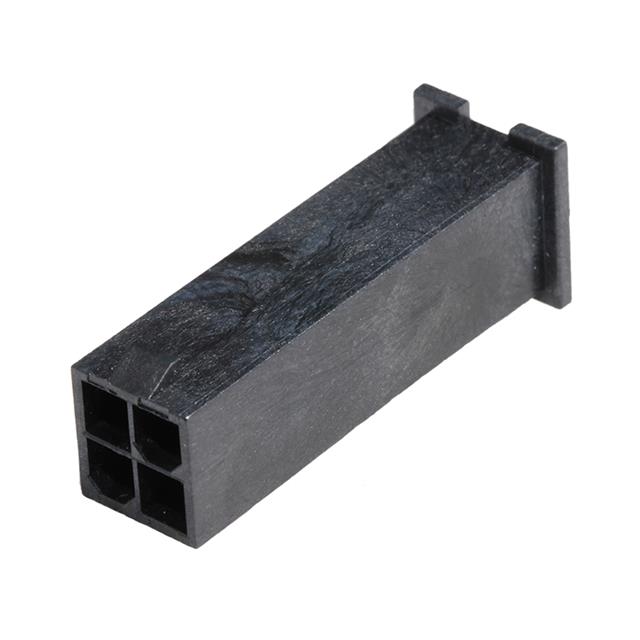

44242-0010

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Product Status :

Active

Operating Temperature :

-40 to 105 °C

IEC Conformance :

No

Contact Style :

SQ PIN-SKT

Termination Type :

Solder

Insertion Force-Max :

11.5648 N

Manufacturer :

Molex

Insulator Color :

Black

Package :

Box

Termination Method :

Solder

Mixed Contacts :

No

Connector Type :

RECTANGULAR POWER CONNECTOR

Packaging type :

Bag

Number of Contacts :

22(POS)

Minimum Operating Temperature :

- 40 C

Subcategory :

Headers and Wire Housings

Product Height (mm) :

33.74(mm)

Contact Type :

-

Product Category :

Headers and Wire Housings

Voltage Rating Max :

250V

Nominal current - rounded value :

2.5A

Voltage Rating :

250 V

Reach Compliance Code :

Compliant

Insulation Resistance :

1000000000 Ω

Empty Shell :

No

Type :

Molex MOL Power and Signal Sol.

HTS Code :

8536.69.40.30

RoHS-compliant :

yes

Nominal current :

2.5A

Contact Material :

BERYLLIUM COPPER

Operating Temperature Max Deg. C :

105C

Row Spacing :

3 mm

Body/Shell Style :

PLUG

Series :

44242

Number of Rows :

2 Row

Polarization Key :

POLARIZED HOUSING

Nominal voltage :

250V

Connection :

Soldering

Product Type :

Headers and Wire Housings

Current Rating (Max) :

2.5/Contact(A)

Product :

Headers

Manufacturer part # :

442420010

Mounting :

Through Hole

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

CS :

3mm

Reliability :

COMMERCIAL

Withdrawl Force-Min :

3.614 N

MIL Conformance :

No

Filter Feature :

No

RoHS :

Details

Operating Temp Range :

-40C to 105C

Packaging :

Bag

Total Number of Contacts :

22

Durability :

10000 Cycles

Product Diameter (mm) :

Not Required(mm)

Maximum Operating Temperature :

+ 105 C

Current Rating :

2.5 A

Min. temperature :

-40°C

Mounting Type :

Panel

UL Flammability Code :

94V-2

Contact Plating :

Gold

Housing Gender :

-

Features :

+ locking mechanism

Contact Gender :

Pin (Male)

Insulation Diameter-Min :

0.05 inch

Contact Resistance :

35 mΩ

ECCN Code :

EAR99

DIN Conformance :

No

Shell Material :

Polyester

Body Orientation :

Straight

Number of Ports :

1(Port)

Housing Color :

Black

Rated Current (Signal) :

2.5 A

Number of Terminals :

22

Mating Contact Row Spacing :

0.118 inch

Option :

GENERAL PURPOSE

Contact Design :

PREASSEM CONN

Additional Feature :

MICRO-FIT 3.0, POLARIZED

Base/Housing Material :

Thermoplastic

No. of rows :

2

Orientation :

Vertical

Application :

Signal

Factory Lead Time :

11 Weeks

Contact Pattern :

RECTANGULAR

Case material :

High temperature resistant thermoplastic

Mounting Style :

CABLE

Pitch (mm) :

3(mm)

Gender :

PL

Mounting Angle :

Straight

Housing Material :

Liquid Crystal Polymer (LCP)

Termination Style :

Solder Cup

Body Depth :

1.1 inch

Tradename :

Micro-Fit 3.0

Content :

1pc(s)

Pbfree Code :

yes

Dielectric Withstanding Voltage :

1000VAC V

Brand :

Molex

Flammability Rating :

UL 94 V-0

Max. temperature :

+105°C

Operating Temperature Min Deg. C :

-40C

Board contact surface :

Gold

Total number of pins :

22

Reference Standard :

CSA, UL

Connector contact surface :

Gold

Pitch :

3.0000 mm

Number of Positions :

22 Position

Terminal Length :

0.27 inch

Mating Contact Pitch :

0.118 inch
