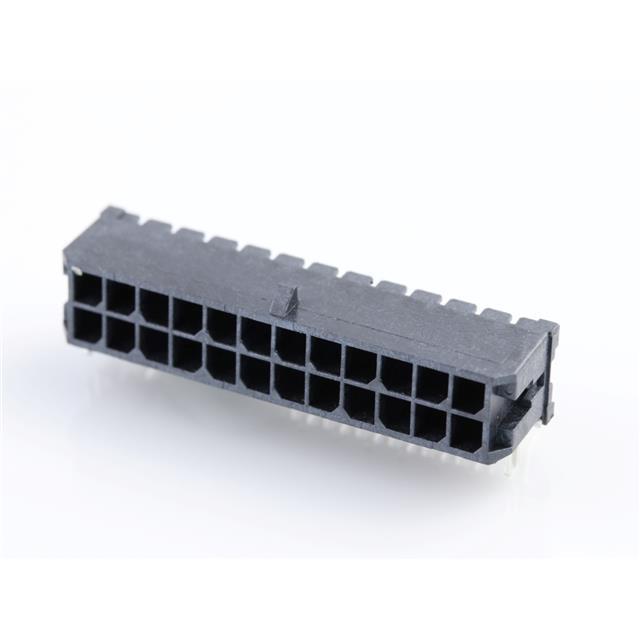

43045-2408

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Flammability :

94V-0

Packaging :

Tape and Reel

HTS Code :

8536.69.40.30

Operating Temp Range :

-40C to 105C

Product Length (mm) :

40.15(mm)

Option :

GENERAL PURPOSE

Subcategory :

Headers and Wire Housings

ECCN Code :

EAR99

Contact Resistance Max :

10(mohm)

Package :

Box

Voltage Rating :

600 V

Contact Style :

SQ PIN-SKT

Pitch :

3.0000 mm

RoHS :

Details

Body/Shell Style :

Receptacle

Product Depth (mm) :

15.4(mm)

Termination Style :

Solder

Number of Contacts :

24(POS)

Housing Material :

Thermoplastic

Empty Shell :

No

Pitch (mm) :

3(mm)

Total Number of Contacts :

24

Pbfree Code :

yes

Number of Ports :

1(Port)

Voltage Rating Max :

600V

Filter Feature :

No

Body Orientation :

RIGHT ANGLE

UL Flammability Code :

94V-0

Reach Compliance Code :

Compliant

Mixed Contacts :

No

Mounting Type :

BOARD

Additional Feature :

TAPE AND REEL PACKAGING

Mounting :

Surface Mount

IEC Conformance :

No

Board Mounting Option :

HOLE .086-.098

Type :

Power

Terminal Pitch :

2.9972 mm

Accessory Type :

-

Maximum Operating Temperature :

+ 105 C

Product Diameter (mm) :

Not Required(mm)

Contact Material :

Brass

Tradename :

Micro-Fit 3.0

Contact Arrangement :

S0P24

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Number of Terminals :

24

JESD-609 Code :

e3

Row Spacing :

3 mm

Mounting Option 1 :

LOCKING

Series :

43045

MIL Conformance :

No

Product Category :

Headers and Wire Housings

Operating Temperature :

-40 to 105 °C

Product :

Headers

Body Depth :

0.606 inch

Termination Type :

Surface Mount

Gender :

Header

Number of Positions :

24 Position

Number of Rows :

2 Row

DIN Conformance :

No

Base/Housing Material :

LCP (Liquid Crystal Polymer)

Rated Current (Signal) :

2.5 A

Minimum Operating Temperature :

- 40 C

Operating Temperature Max Deg. C :

105C

Mounting Style :

Surface Mount

Shell Material :

GLASS FILLED LIQUID CRYSTAL POLYMER

Brand :

Molex

Current Rating :

8.5 A

Reliability :

COMMERCIAL

Mounting Angle :

RIGHT ANGLE

Reference Standard :

UL

Orientation :

RIGHT ANGLE

Insulator Color :

Black

Body Breadth :

0.29 inch

Insulation Resistance :

1000000000 Ω

Contact Finish Termination :

TIN (100) OVER NICKEL (50)

Contact Plating :

Gold

Application :

Power

Product Height (mm) :

8.77(mm)

Housing Color :

Black

Contact Resistance :

10 MΩ

Insertion Force-Max :

11.5648 N

Manufacturer :

Molex

Termination Method :

Solder

Product Status :

Active

Contact Type :

-

Flammability Rating :

UL 94 V-0

Connector Type :

RECTANGULAR POWER CONNECTOR

Product Type :

Headers and Wire Housings

Operating Temperature Min Deg. C :

-40C

Plating Thickness :

30u inch

Contact Gender :

Pin (Male)

Number of Contact Rows :

2

Current Rating (Max) :

5/Contact(A)

Product Length :

40.15 mm
