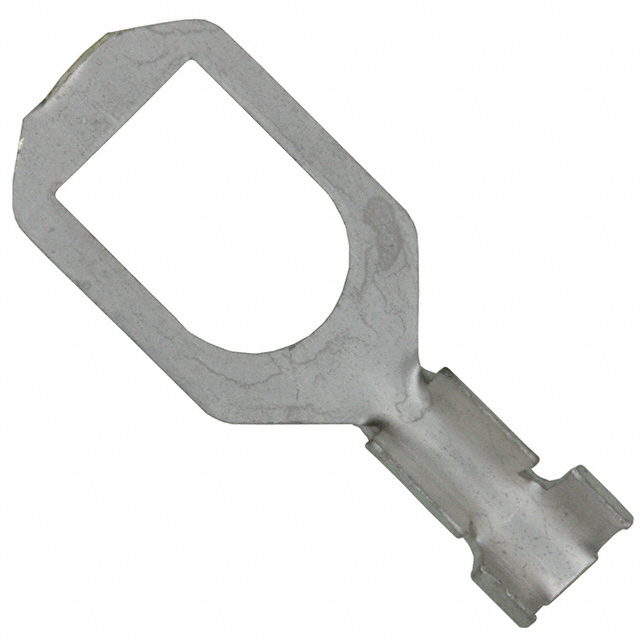

41590
Or copy the link below:
- Mfr.Part #
- 41590
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN SPADE TERM 20-24AWG #10
- Stock
- 41,612
- In Stock ：
- 41,612
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Spade Connectors
- Contact Finish :
- Tin
- Lifecycle Status :
- ACTIVE (Last Updated: 6 months ago)
- Stud Diameter :
- 5 mm
- Tongue Thickness :
- 1.65mm
- Factory Lead Time :
- 9 Weeks
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Wire Gauge (Min) :
- 20 AWG
- Packaging :
- Cut Tape (CT)
- Length - Overall :
- 0.621 15.77mm
- Heavy Duty :
- No
- Insulated Wire Support :
- yes
- Terminal and Terminal Block Type :
- FORK TERMINAL
- ELV :
- Compliant
- Width - Outer Edges :
- 0.290 7.37mm
- Length :
- 15.77mm
- Diameter - Inside :
- 889 µm
- ECCN Code :
- EAR99
- Pbfree Code :
- yes
- Length - Ring Center to Termination :
- 0.220 5.59mm
- Contact Material :
- Brass
- Mount :
- Free Hanging
- Material Thickness :
- 508μm
- Mounting Type :
- Free Hanging (In-Line)
- HTS Code :
- 8536.90.40.00
- RoHS Status :
- RoHS Compliant
- Terminal Type :
- Standard
- Published :
- 1997
- Insulation Diameter :
- 0.080 ~ 0.100 (2.03mm ~ 2.54mm)
- Wire Cross Section :
- 0.6 mm2
- Tongue Inside Opening :
- 0.197 (5.00mm)
- Wire Gauge :
- 20-24 AWG
- Lead Free :
- Not Applicable
- Orientation :
- Straight
- Insulation :
- Non-Insulated
- Wire Gauge (Max) :
- 24 AWG
- Termination :
- Crimp
- Stud/Tab Size :
- 10 Stud
- Datasheets
- 41590
41590 datasheet pdf and Terminals - Spade Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
