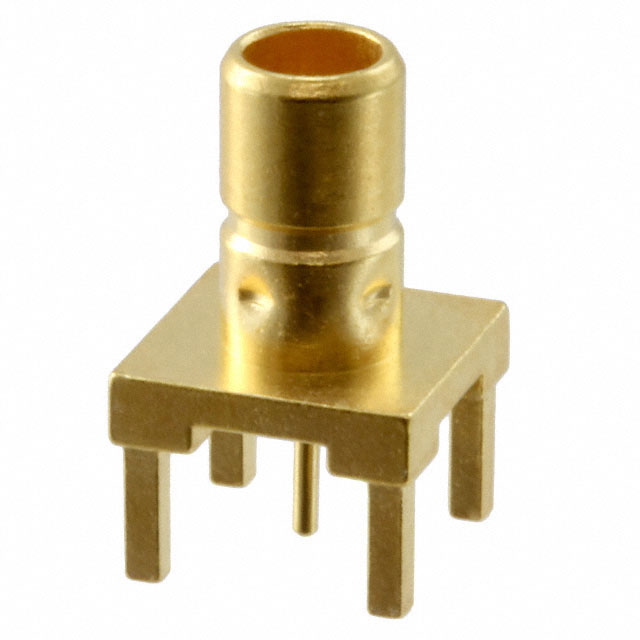

415504-3
Or copy the link below:
- Mfr.Part #
- 415504-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- SMB
- Datasheet
- Download
- Description
- CONN MINI SMB JACK STR 75OHM PCB
- Stock
- 858
- In Stock ：
- 858
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Coaxial Connector (RF) Assemblies
- Depth :
- 6.35mm
- Frequency :
- 3GHz
- Polarity :
- Standard
- Operating Temperature :
- -65°C~165°C
- IEC Conformance :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Published :
- 2005
- Body Material :
- Brass
- Wire/Cable Type :
- Coaxial
- Insertion Loss :
- 0.3 dB
- Contact Termination :
- Solder
- Center Contact Plating :
- Gold
- Dielectric Material :
- Polytetrafluoroethylene (PTFE)
- Mount :
- PCB, Through Hole
- Factory Lead Time :
- 13 Weeks
- Length :
- 6.35mm
- RoHS Status :
- RoHS Compliant
- Number of Positions :
- 1
- Sealable :
- No
- Package / Case :
- SMB
- Insulation Resistance :
- 1GOhm
- Length - Tail :
- 3.05mm
- Connector Style :
- SMB, Mini
- Filter Feature :
- No
- DIN Conformance :
- No
- Gender :
- FEMALE
- Packaging :
- Bulk
- REACH SVHC :
- No SVHC
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Voltage - Rated :
- 335V
- Insulation Material :
- Polytetrafluoroethylene
- Fastening Type :
- Snap-On
- Connector Type :
- Jack, Male Pin
- Option :
- GENERAL PURPOSE
- Impedance :
- 75Ohm
- PCB Mounting Orientation :
- Vertical
- MIL Conformance :
- No
- Mounting Type :
- Through Hole
- Datasheets
- 415504-3
Jack, Male Pin Snap-On 75Ohm Bulk SMB, Mini Solder Polytetrafluoroethylene (PTFE) -65°C~165°C
415504-3 Overview
The product comes in a package of Jack, Male Pin.Its mounting type is Through Hole.Packaging is performed using a Bulk case.A device is enclosed in the packaging with the SMB.PCB, Through Hole mounts the part.There is no operating temperature for the device.Performing well when operated at frequency 3GHz can be achieved.
415504-3 Features
415504-3 Applications
There are a lot of TE Connectivity AMP Connectors
415504-3 Coaxial Connectors applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
