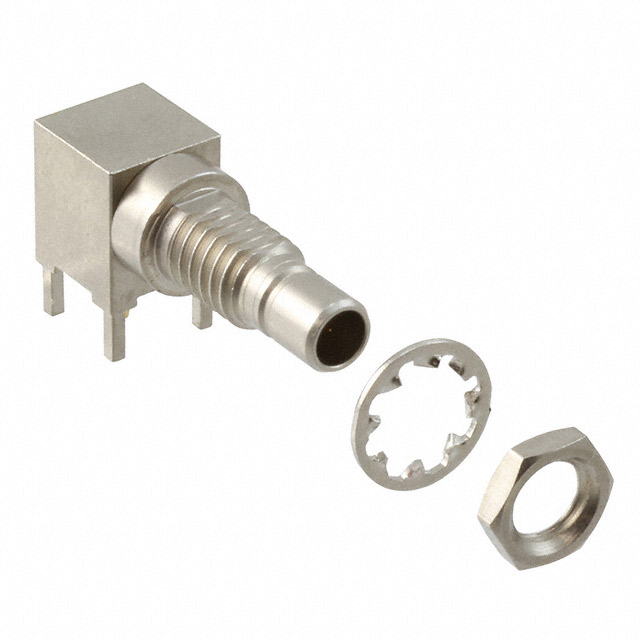

415377-1
Or copy the link below:
- Mfr.Part #
- 415377-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- SMB
- Datasheet
- Download
- Description
- CONN MINI SMB JACK R/A 75OHM PCB
- Stock
- 50
- In Stock ：
- 50
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Coaxial Connector (RF) Assemblies
- Frequency :
- 4GHz
- Sealable :
- No
- Polarity :
- Standard
- Body Depth :
- 0.785 inch
- Includes :
- 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
- Contact Termination :
- Solder
- Number of Ports :
- 1
- Mounting Type :
- Panel Mount, Through Hole, Right Angle
- Impedance :
- 75Ohm
- RoHS Status :
- RoHS Compliant
- Contact Style :
- COAX
- Total Number of Contacts :
- 1
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Package / Case :
- SMB
- Housing Color :
- Silver
- REACH SVHC :
- No SVHC
- Filter Feature :
- No
- ECCN Code :
- EAR99
- JESD-609 Code :
- e4
- Gender :
- FEMALE
- Fastening Type :
- Snap-On
- ELV :
- Compliant
- Packaging :
- Bulk
- Voltage - Rated :
- 335V
- MIL Conformance :
- No
- Connector Style :
- SMB, Mini
- Insulation Resistance :
- 1GOhm
- Published :
- 2002
- Orientation :
- RIGHT ANGLE
- Durability :
- 500 Cycles
- Factory Lead Time :
- 13 Weeks
- Insulation Material :
- Polytetrafluoroethylene
- Dielectric Material :
- Polytetrafluoroethylene (PTFE)
- Contact Resistance :
- 8mOhm
- Connector Type :
- Jack, Male Pin
- Body Material :
- Brass
- IEC Conformance :
- No
- Body Finish :
- Nickel
- Reliability :
- COMMERCIAL
- PCB Mounting Orientation :
- RIGHT ANGLE
- Option :
- GENERAL PURPOSE
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Positions :
- 1
- Shell Material :
- Zinc
- Insertion Loss :
- 0.3 dB
- Mount :
- Bulkhead, Through Hole
- Center Contact Plating :
- Gold
- Length - Tail :
- 2.79mm
- Additional Feature :
- INSERTION LOSS MAX. AT 3 GHZ
- Mounting Feature :
- Bulkhead - Front Side Nut
- Length :
- 19.94mm
- Operating Temperature :
- -65°C~165°C
- DIN Conformance :
- No
- Body Breadth :
- 0.25 inch
- Datasheets
- 415377-1
Jack, Male Pin Snap-On 75Ohm Bulk SMB, Mini Solder 1 Port Polytetrafluoroethylene (PTFE) -65°C~165°C
415377-1 Overview
Packaging is Jack, Male Pin.This device has a Panel Mount, Through Hole, Right Angle mounting type.An orange Bulk case is used to package the product.Other features include INSERTION LOSS MAX. AT 3 GHZ, to name just a few.This package contains an enclosed device in the SMB.A variety of tasks can be performed using its 1 ports.There is a mounting hole at Bulkhead, Through Hole.Devices operate at -65°C~165°C operating temperatures.A good performance can be achieved at a frequency of 4GHz, as long as it is operated at a low power consumption.
415377-1 Features
415377-1 Applications
There are a lot of TE Connectivity AMP Connectors
415377-1 Coaxial Connectors applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
