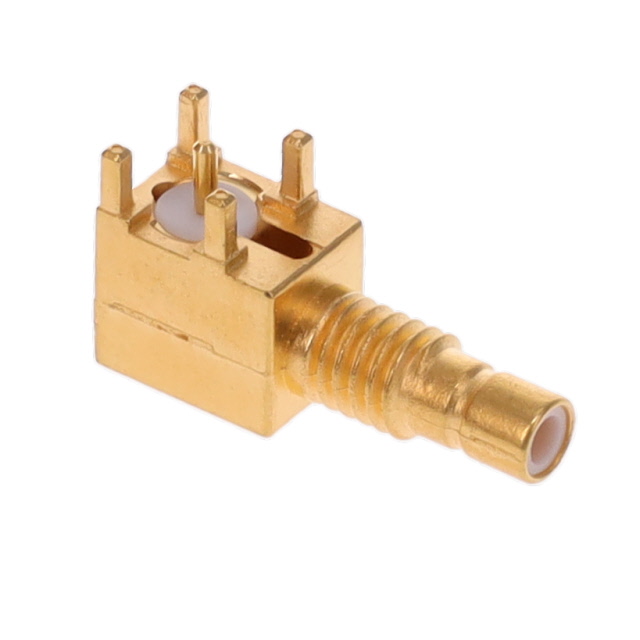

414963-1
Or copy the link below:
- Mfr.Part #
- 414963-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN SMB JACK R/A 50 OHM PCB
- Stock
- 4,223
- In Stock ：
- 4,223
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Coaxial Connector (RF) Assemblies
- Published :
- 2003
- Sealable :
- No
- Insulation Resistance :
- 1GOhm
- Center Contact Plating :
- Gold
- Lead Free :
- Lead Free
- Factory Lead Time :
- 4 Weeks
- Option :
- GENERAL PURPOSE
- PCB Mounting Orientation :
- RIGHT ANGLE
- Contact Termination :
- Solder
- Insulation Material :
- POLYTETRAFLUORO ETHYLENE
- MIL Conformance :
- No
- RoHS Status :
- RoHS Compliant
- Packaging :
- Bulk
- Insertion Loss :
- 0.6dB
- Frequency :
- 4GHz
- Fastening Type :
- Snap-On
- JESD-609 Code :
- e4
- Mount :
- Bulkhead
- Additional Feature :
- INSERTION LOSS MAX. AT 3 GHZ
- Center Contact Material :
- Brass
- Connector Type :
- Jack, Male Pin
- Length :
- 19.87mm
- Depth :
- 6.35mm
- Mounting Type :
- Through Hole, Right Angle
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Height :
- 7.67mm
- DIN Conformance :
- No
- Body Material :
- ZINC ALLOY
- Orientation :
- RIGHT ANGLE
- Pbfree Code :
- yes
- Connector Style :
- SMB
- Polarity :
- Standard
- Number of Positions :
- 1
- Length - Tail :
- 2.79mm
- Dielectric Material :
- Polytetrafluoroethylene (PTFE)
- Filter Feature :
- No
- Impedance :
- 50Ohm
- Mating Cycles :
- 500
- Operating Temperature :
- -65°C~165°C
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- IEC Conformance :
- No
- Voltage - Rated :
- 335V
- Datasheets
- 414963-1
Jack, Male Pin Snap-On 50Ohm Bulk SMB Solder Polytetrafluoroethylene (PTFE) -65°C~165°C
414963-1 Overview
The product comes in a package of Jack, Male Pin.Its mounting type is Through Hole, Right Angle.Packaging is performed using a Bulk case.Additionally, there are other features, such as INSERTION LOSS MAX. AT 3 GHZ.Bulkhead mounts the part.There is no operating temperature for the device.Performing well when operated at frequency 4GHz can be achieved.
414963-1 Features
414963-1 Applications
There are a lot of TE Connectivity AMP Connectors
414963-1 Coaxial Connectors applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
