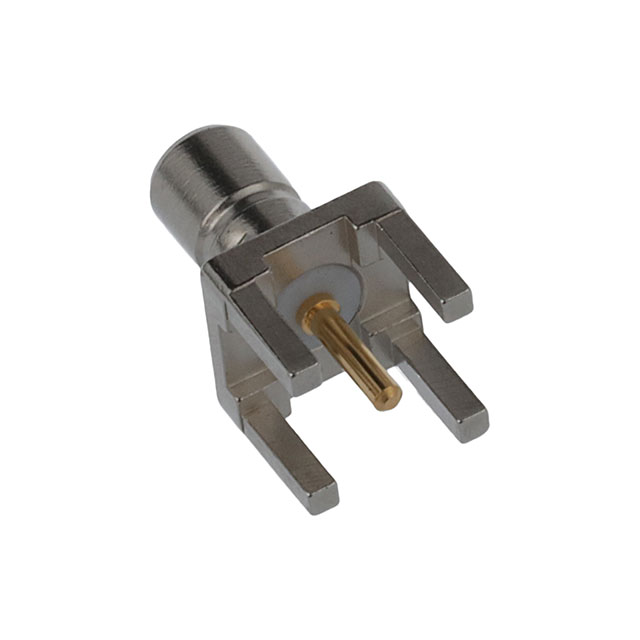

413990-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Coaxial Connector (RF) Assemblies

Impedance :

50Ohm

Gender :

FEMALE

Body Plating :

Copper

Mating Cycles :

500

Insertion Loss :

0.3dB

Factory Lead Time :

4 Weeks

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Insertion Force-Max :

62.272 N

Connector Type :

Receptacle, Male Pin

Height :

7.62mm

Packaging :

Bulk

Additional Feature :

INSERTION LOSS MAX. AT 3 GHZ

Body Breadth :

0.25 inch

RoHS Status :

RoHS Compliant

Lead Free :

Lead Free

Mount :

PCB, Through Hole

Insulation Material :

TEFLON

Total Number of Contacts :

1

IEC Conformance :

No

Housing Color :

Silver

Withdrawl Force-Min :

8.896 N

Length :

6.35mm

Contact Termination :

Solder

Number of Positions :

1

Reliability :

COMMERCIAL

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Center Contact Plating :

Gold

PCB Mounting Orientation :

Vertical

REACH SVHC :

Unknown

Insulation Resistance :

1GOhm

Operating Temperature :

-65°C~165°C

Body/Shell Style :

JACK

Body Material :

Brass

Mounting Type :

Through Hole

Length - Tail :

3.94mm

DIN Conformance :

No

Connector Style :

SMB

Published :

1997

Voltage - Rated :

335V

MIL Conformance :

No

Military Standard :

MIL-C-39012

Contact Resistance :

8mOhm

Number of Ports :

1

Fastening Type :

Snap-On

Contact Style :

COAX

Frequency :

4GHz

Polarity :

Normal, Standard

Sealable :

No

Option :

GENERAL PURPOSE

ECCN Code :

EAR99

Body Finish :

Nickel

Dielectric Material :

Polytetrafluoroethylene (PTFE)

Depth :

6.35mm

Filter Feature :

No
