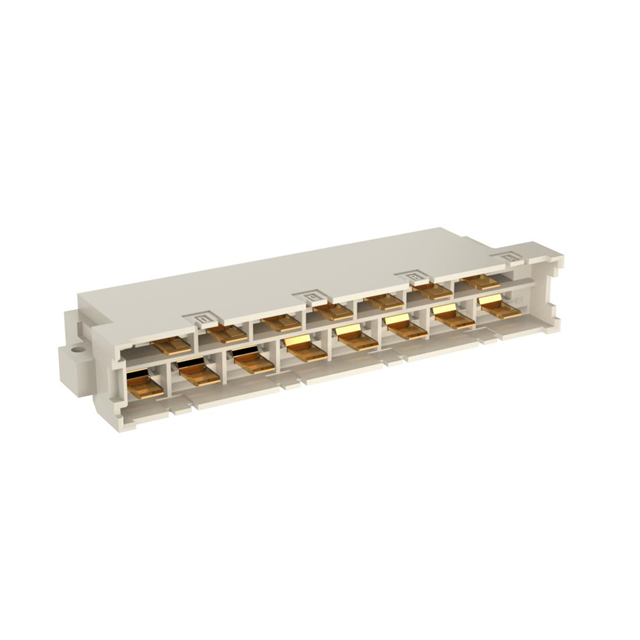

413638

Manufacturer :

TE Connectivity

Product Category :

Blade Type Power Connector Assemblies

Polarization Key :

POLARIZED HOUSING

Product Length (mm) :

94(mm)

Withdrawl Force-Min :

5.7824 N

Body Orientation :

RIGHT ANGLE

Contact Plating :

Silver

Mating Contact Row Spacing :

0.256 inch

Product Depth (mm) :

25.3(mm)

Mounting Type :

BOARD

Connector Type :

BOARD EURO CONNECTOR

JESD-609 Code :

e4

PCB Contact Pattern :

STAGGERED

Contact Resistance :

8 mΩ

Number Of PCB Rows :

2

Reliability :

COMMERCIAL

Insulation Resistance :

1000000000000 Ω

Number of Contact Rows :

2

Contact Gender :

Male

Contact Finish Termination :

Gold (Au)

Mixed Contacts :

No

Body Depth :

0.988 inch

HTS Code :

8536.69.40.30

IEC Conformance :

yes

PCB Contact Row Spacing :

5.08 mm

Contact Pattern :

STAGGERED

DIN Conformance :

yes

Terminal Length :

0.118 inch

Mounting Style :

Through Hole

Rated Current (Signal) :

10 A

Contact Material :

COPPER ALLOY

UL Flammability Code :

94V-1

Additional Feature :

STANDARDS: DIN 41612; IEC 60603-2, TERMINAL PITCH FOR POWER CONTACTS: 10.16 MM

Number of Contacts :

15(POS)

Operating Temp Range :

-55C to 125C

Durability :

500 Cycles

Terminal Pitch :

10.16 mm

MIL Conformance :

No

Dielectric Withstanding Voltage :

3100VAC V

Filter Feature :

No

ECCN Code :

EAR99

Manufacturer :

ERNI

Termination Type :

Solder

Option :

GENERAL PURPOSE

Name of Rows Loaded :

Z,D

Reference Standard :

UL, CSA

Subcategory :

Headers and Edge Type Connectors

Type :

DIN 41612

Body Breadth :

0.583 inch

Contact Style :

BLADE PIN-SKT

Insertion Force-Max :

5.7824 N

Termination Method :

Solder

Total Number of Contacts :

15

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Gender :

M

Pbfree Code :

yes

Pitch (mm) :

5.08(mm)

Reach Compliance Code :

Compliant

Mating Contact Pitch :

0.4 inch
