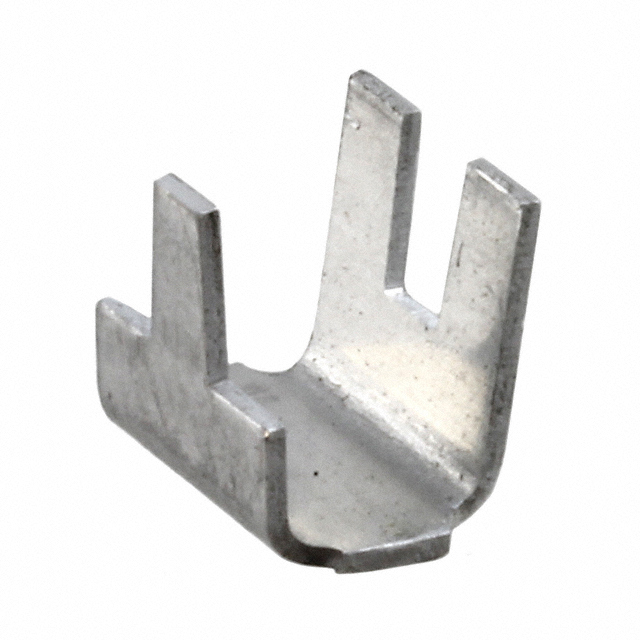

41276

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Wire Splice Connectors

PCB Contact Row Spacing :

2.54 mm

Body Breadth :

0.36 inch

Published :

2004

Termination :

Crimp

Packaging :

Cut Tape (CT)

PCB Contact Pattern :

RECTANGULAR

ELV :

Compliant

Contact Gender :

Male

Mounting Type :

BOARD

Number of Wire Entries :

Varies by Wire Size

Rated Current (Signal) :

1A

Plating Thickness :

15μin

Insulator Color :

Black

Body Length or Diameter :

2 inch

Contact Finish - Mating :

AU

RoHS Status :

RoHS Compliant

Factory Lead Time :

12 Weeks

Polarization Key :

CTR W/GUIDE SLOTS

Reference Standard :

UL, CSA

Contact Pattern :

RECTANGULAR

Operating Temperature (Max) :

105°C

Mounting Option 1 :

Latch

Mating Contact Pitch :

0.1 inch

Number of Rows :

2

Number Of PCB Rows :

2

Package / Case :

125

Insulation :

Non-Insulated

Additional Feature :

LATCH, H=.57"

Operating Temperature (Min) :

-55°C

Reach Compliance Code :

Unknown

Terminal Type :

Crimpband, Open Band

Body Depth :

0.385 inch

Connector Type :

BOARD CONNECTOR

Body/Shell Style :

Receptacle

Dielectric Withstanding Voltage :

1000VAC V

Material :

Aluminium

Total Number of Contacts :

34

Lead Free :

Lead Free

Contact Style :

SQ PIN-SKT

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Conductors :

ONE

Mating Contact Row Spacing :

0.1 inch

Length - Termination :

0.12 inch

Reliability :

COMMERCIAL

Mounting Style :

Straight
