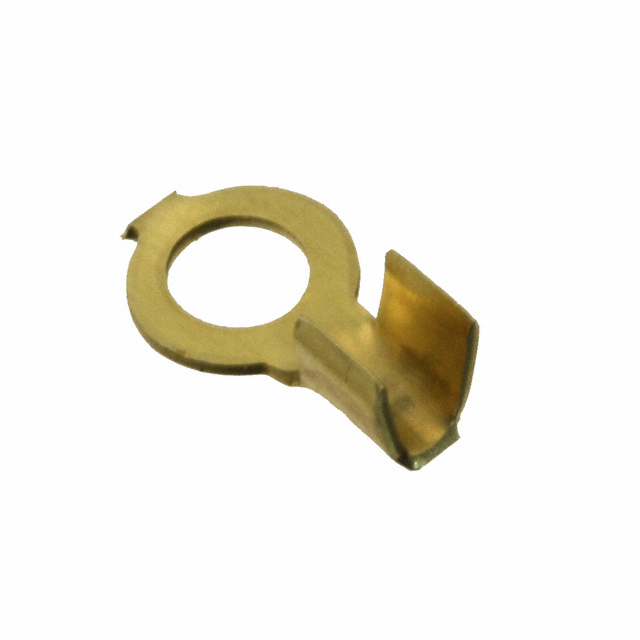

40702
Or copy the link below:
- Mfr.Part #
- 40702
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RING OVAL 14-20AWG #6 CRIMP
- Stock
- 9,181
- In Stock ：
- 9,181
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Ring Connectors
- Terminal and Terminal Block Type :
- RING TERMINAL
- ELV :
- Compliant
- Length :
- 10.03mm
- Contact Plating :
- Unplated
- Orientation :
- Straight
- Stud Diameter :
- 3.68 mm
- Length - Overall :
- 0.395 10.03mm
- Termination :
- Crimp
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Published :
- 1997
- Wire Gauge :
- 14-20 AWG
- Factory Lead Time :
- 9 Weeks
- Terminal Type :
- Oval
- Contact Material :
- Brass
- Wire Gauge (Min) :
- 20 AWG
- Mounting Type :
- Free Hanging (In-Line)
- ECCN Code :
- EAR99
- Stud/Tab Size :
- 6 Stud
- Width - Outer Edges :
- 0.250 6.35mm
- Plating Thickness :
- 2.54μm
- Packaging :
- Tape and Reel (TR)
- Insulation :
- Non-Insulated
- Stud Size :
- M3.5
- Mount :
- Free Hanging
- Heavy Duty :
- No
- Material Thickness :
- 508μm
- Thickness :
- 0.020 0.51mm
- Lead Free :
- Not Applicable
- HTS Code :
- 8536.90.40.00
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Diameter - Inside :
- 2.03 mm
- Wire Cross Section :
- 2 mm2
- Tongue Thickness :
- 508μm
- Number of Holes :
- 1
- RoHS Status :
- RoHS Compliant
- Pbfree Code :
- yes
- Wire Gauge (Max) :
- 14 AWG
- Datasheets
- 40702
40702 datasheet pdf and Terminals - Ring Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
