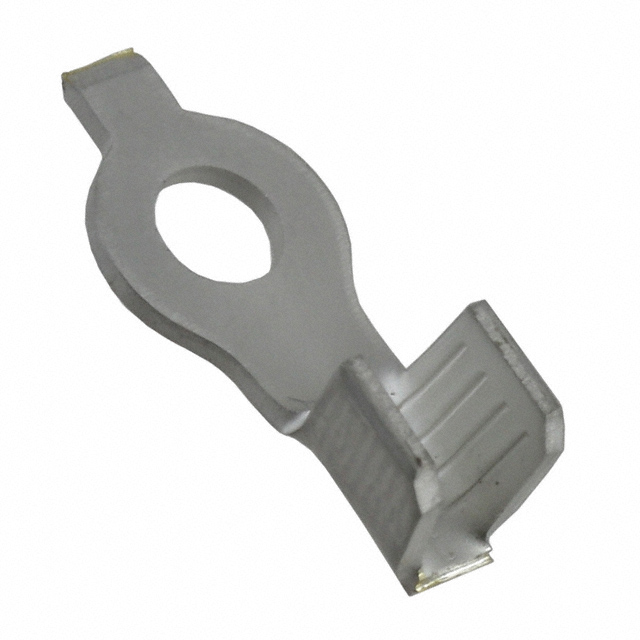

40523
Or copy the link below:
- Mfr.Part #
- 40523
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RING CIRC 10-12AWG #8 CRIMP
- Stock
- 45,747
- In Stock ：
- 45,747
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Ring Connectors
- ELV :
- Compliant
- Wire Gauge :
- 10-12 AWG
- ECCN Code :
- EAR99
- Contact Material :
- Brass
- Published :
- 2004
- Lead Free :
- Not Applicable
- Diameter - Inside :
- 3.05 mm
- Thickness :
- 0.040 1.02mm
- Terminal Type :
- Circular
- Number of Holes :
- 1
- Termination :
- Crimp
- Stud/Tab Size :
- 8 Stud
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Length - Overall :
- 0.670 17.02mm
- Terminal and Terminal Block Type :
- RING TERMINAL
- Mount :
- Free Hanging
- Tongue Thickness :
- 1.016mm
- Wire Cross Section :
- 6 mm2
- Depth :
- 8.71mm
- Material Thickness :
- 1.016mm
- Wire Gauge (Max) :
- 10 AWG
- Heavy Duty :
- No
- Wire Gauge (Min) :
- 12 AWG
- Mounting Type :
- Free Hanging (In-Line)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Packaging :
- Tape and Reel (TR)
- Contact Plating :
- Tin
- Factory Lead Time :
- 4 Weeks
- Orientation :
- Straight
- Insulation :
- Non-Insulated
- RoHS Status :
- RoHS Compliant
- Length :
- 17.018mm
- Width - Outer Edges :
- 0.343 8.71mm
- Feature :
- Serrated Termination
- Stud Diameter :
- 4.34 mm
- HTS Code :
- 8536.90.40.00
- Stud Size :
- M4
- Pbfree Code :
- yes
- Datasheets
- 40523
