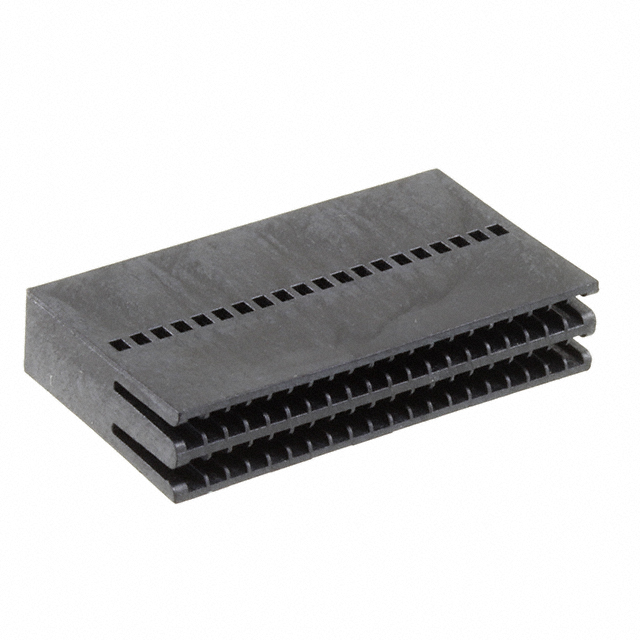

4-487938-0

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

FFC, FPC (Flat Flexible) Connector Housings

Note :

Contacts Not Included

Housing Color :

Black

Lifecycle Status :

ACTIVE (Last Updated: 4 days ago)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Insulation Resistance :

5GOhm

RoHS Status :

RoHS Compliant

Mount :

Cable, Free Hanging

Orientation :

Straight

Mixed Contacts :

No

Connector Type :

Housing for Female Contacts

Series :

AMPMODU System 50

Contact Pattern :

RECTANGULAR

Contact Style :

SQ PIN-SKT

Mating Alignment :

Without

MIL Conformance :

No

Sealable :

No

Total Number of Contacts :

40

Pbfree Code :

yes

IEC Conformance :

No

Housing Material :

Polyester

Option :

GENERAL PURPOSE

Body/Shell Style :

Receptacle

Body Breadth :

0.198 inch

Filter Feature :

No

Circuit Application :

Signal

DIN Conformance :

No

Factory Lead Time :

13 Weeks

Flammability Rating :

UL94 V-0

Material Flammability Rating :

UL94 V-0

Lead Free :

Lead Free

Lead Pitch :

1.27mm

Number of Positions :

40

Voltage - Rated AC :

100V

Mating Connector Lock :

With

FFC, FCB Thickness :

0.05-0.08mm

Gender :

FEMALE

Operating Supply Voltage :

100V

Dielectric Withstanding Voltage :

300VAC V

ELV :

Compliant

Wire/Cable Type :

Flat Flex

Packaging :

Bulk

Operating Temperature :

-55°C~105°C

Reliability :

COMMERCIAL

Body Depth :

0.585 inch

Number of Rows :

2

Pitch :

0.050 1.27mm

Length :

26.59mm

Current Rating :

1.5A

Flat Flex Type :

FFC

Reference Standard :

UL

Row Spacing :

2.54 mm

Published :

2007
