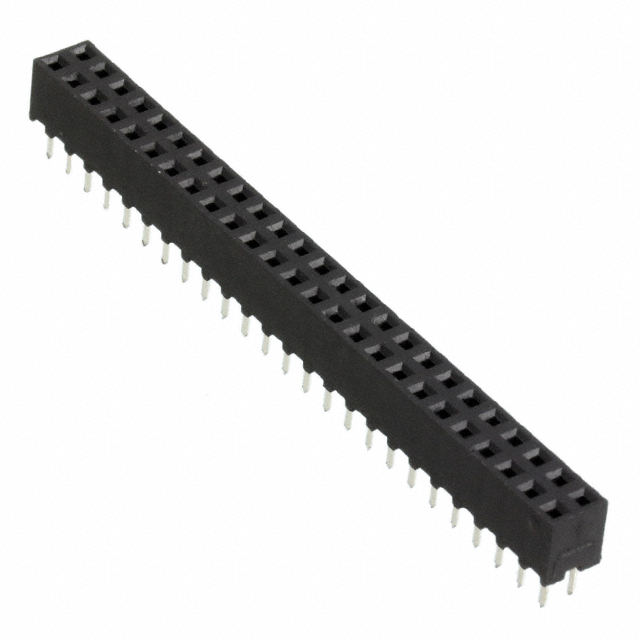

4-1470209-8
Or copy the link below:
- Mfr.Part #
- 4-1470209-8
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 50POS 0.079 GOLD PCB
- Stock
- 9
- In Stock ：
- 9
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Receptacles, Female Sockets
- RoHS Status :
- RoHS Compliant
- Contact Finish Thickness - Post :
- 80.0μin 2.03μm
- Mounting Type :
- Through Hole
- Contact Finish - Post :
- Tin
- Stack Height :
- 4.5mm
- UL Flammability Code :
- 94V-0
- Contact Resistance :
- 15mOhm
- PCB Thickness :
- 1.57mm
- Termination :
- Solder
- Insulation Resistance :
- 1GOhm
- DIN Conformance :
- No
- Contact Shape :
- Square
- Housing Material :
- Thermoplastic
- Mixed Contacts :
- No
- Length :
- 50mm
- Operating Supply Voltage :
- 250V
- Contact Length - Post :
- 0.102 2.60mm
- Operating Temperature :
- -40°C~105°C
- Filter Feature :
- No
- Contact Material :
- COPPER ALLOY
- Insulation Height :
- 0.177 4.50mm
- Approval Agency :
- CSA
- Mount :
- Through Hole
- Series :
- AMPMODU
- Published :
- 2006
- Style :
- Board to Board
- Contact Finish - Mating :
- Gold
- Contact Current Rating :
- 1A
- Plating Thickness :
- 8μm
- Material Flammability Rating :
- UL94 V-0
- Lead Free :
- Lead Free
- Factory Lead Time :
- 16 Weeks
- Number of Positions :
- 50
- Number of Rows :
- 2
- Max Voltage Rating (AC) :
- 200V
- Lead Length :
- 2.6mm
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Flammability Rating :
- UL94 V-0
- Housing Color :
- Black
- Fastening Type :
- Push-Pull
- Packaging :
- Tray
- Contact Type :
- Female Socket
- ELV :
- Compliant
- Current Rating :
- 1A
- Option :
- GENERAL PURPOSE
- Row Spacing - Mating :
- 0.079 (2.00mm)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Connector Type :
- Receptacle
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- PCB Mount Retention :
- Without
- Orientation :
- Vertical
- Radiation Hardening :
- No
- Voltage - Rated :
- 250VAC
- Pitch - Mating :
- 0.079 2.00mm
- Contact Finish Thickness - Mating :
- 8.00μin 0.203μm
- IEC Conformance :
- No
- Number of Positions Loaded :
- All
- MIL Conformance :
- No
- Depth :
- 4mm
- JESD-609 Code :
- e3
- Datasheets
- 4-1470209-8
2 Rows Receptacle Solder Copper Alloy Through Hole Tray Gold Polyamide (PA66), Nylon 6/6 50 Positions Female Socket
4-1470209-8 Overview
Currently, it is packaged in Receptacle.The mounting type of the device is Through Hole.A Tray case is used to package the product.A product of the AMPMODU Series, it belongs to the range of products of that series.Through Hole represents the mounting point for the part.You're going to need 250V to power this memory.-40°C~105°C Operating Temperature is the default operating temperature for the device.
4-1470209-8 Features
AMPMODU series
4-1470209-8 Applications
There are a lot of TE Connectivity AMP Connectors
4-1470209-8 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
