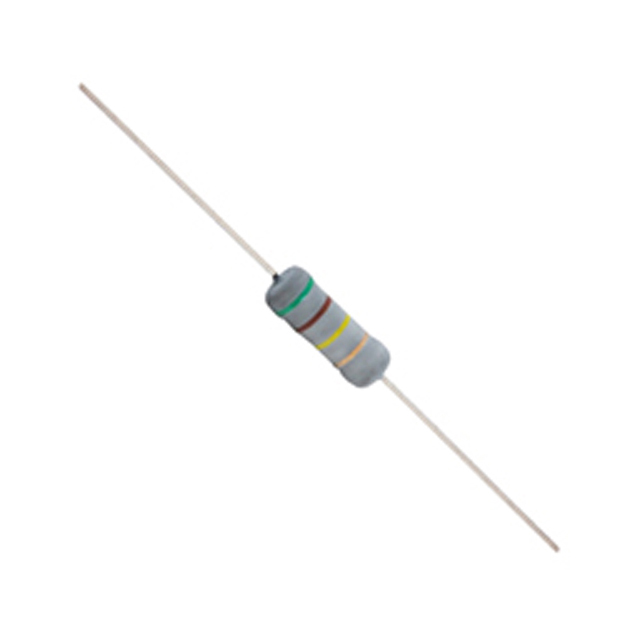

3W022

Manufacturer :

NTE Electronics, Inc.

Product Category :

Through Hole Resistors

Package :

Bag

Height - Seated (Max) :

-

Product Status :

Active

Package Length :

24.5 mm

Manufacturer :

NTE Electronics

Product Height (mm) :

Not Required(mm)

Power (Watts) :

3W

Package / Case :

Axial

Product Diameter (mm) :

9(mm)

Working Voltage :

750 V

Rated Power Dissipation (P) :

3 W

Temperature Coefficient :

±200ppm/°C

Tolerance :

±5%

Package Type :

Axial Lead

Number of Terminations :

2

Wattage :

3

Subcategory :

Fixed Resistors

Construction :

Cylindrical

Lead Length :

1.18

Features :

Flame Proof, Safety

Size / Dimension :

0.354" Dia x 0.965" L (9.00mm x 24.50mm)

Product Length (mm) :

24.5(mm)

Type :

Metal Film

Flame-Proof Support :

No

Number of Terminals :

2

Termination Style :

Axial

Failure Rate :

-

Case Style :

Conformal Coated

Military Standard :

Not Required

Lead Spacing (nom) :

Not Required(mm)

Operating Temp Range :

-55C to 200C

Resistance :

22 Ohms

Power Rating(s) :

3(W)

Resistor Type :

FIXED RESISTOR

Reach Compliance Code :

Unknown

Operating Temperature :

-55°C ~ 200°C

Product Depth (mm) :

Not Required(mm)

Lead Diameter :

0.032

Composition :

Metal Oxide Film

Tolerance (+ or -) :

5%

ECCN Code :

EAR99

Terminal Type :

Axial Leads

Series :

-

Technology :

Metal Oxide Film

Supplier Device Package :

Axial
