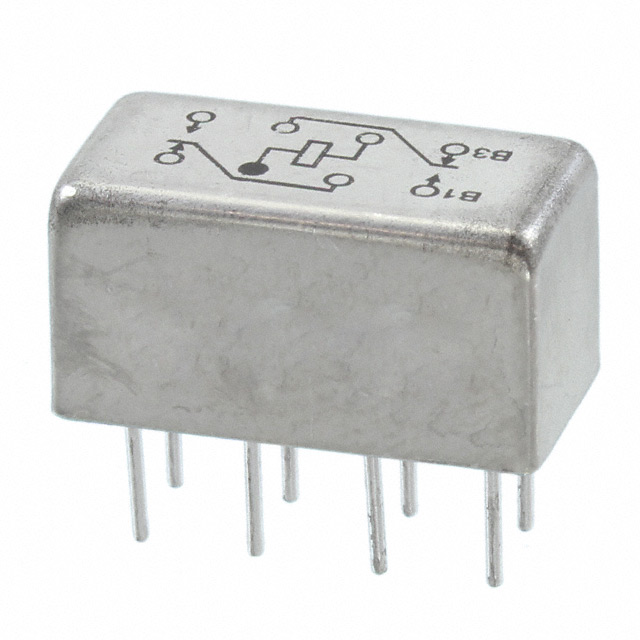

3SBC5004K1
Or copy the link below:
- Mfr.Part #
- 3SBC5004K1
- Manufacturer
- TE Connectivity Aerospace Defense and Marine
- Package / Case
- Datasheet
- Download
- Description
- RELAY GEN PURPOS DPDT 2A 26.5VDC
- Stock
- 7,061
- In Stock ：
- 7,061
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Aerospace Defense and Marine
- Product Category :
- Signal Relays, Up to 2 Amps
- Must Operate Voltage :
- 13.5VDC
- Number of Pins :
- 8
- Relay Type :
- GENERAL PURPOSE
- Mount :
- Through Hole
- Coil Resistance :
- 1.35kOhm
- Switching Voltage :
- 115VAC 28VDC -Max
- Coil Current :
- 19.6mA
- Mounting Type :
- Through Hole
- Max Current Rating :
- 2A
- Power Consumption :
- 520mW
- Coil Type :
- Non Latching
- Operating Temperature :
- -65°C~125°C
- Termination Style :
- PC Pin
- Factory Lead Time :
- 15 Weeks
- Contact Form :
- DPDT (2 Form C)
- RoHS Status :
- Non-RoHS Compliant
- Contact Current(DC)-Max :
- 2A
- Coil/Input Supply Type :
- DC
- Contact Voltage(AC)-Max :
- 115V
- Series :
- 3SBC, CII
- Coil Voltage :
- 26.5VDC
- Max Voltage Rating (DC) :
- 28V
- Electrical Life :
- 100000 Cycle(s)
- Coil Power :
- 520mW
- Contact Current(AC)-Max :
- 2A
- Length :
- 15.49mm
- Published :
- 2000
- Contact (AC) Max Rating R Load :
- 2A@115VAC
- Sealing :
- Hermetically Sealed
- Release Time :
- 5.5 ms
- Termination :
- PC Pins
- Pbfree Code :
- No
- Lead Free :
- Contains Lead
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Must Release Voltage :
- 1.5VDC
- ECCN Code :
- EAR99
- Seal Rating :
- Sealed - Hermetically
- Contact/Output Supply Type :
- AC/DC
- Relay Action :
- Momentary
- Throw Configuration :
- DPDT
- ELV :
- Non-Compliant
- Operate Time :
- 4ms
- Coil Voltage (DC) :
- 26.5V
- Packaging :
- Bulk
- Datasheets
- 3SBC5004K1
