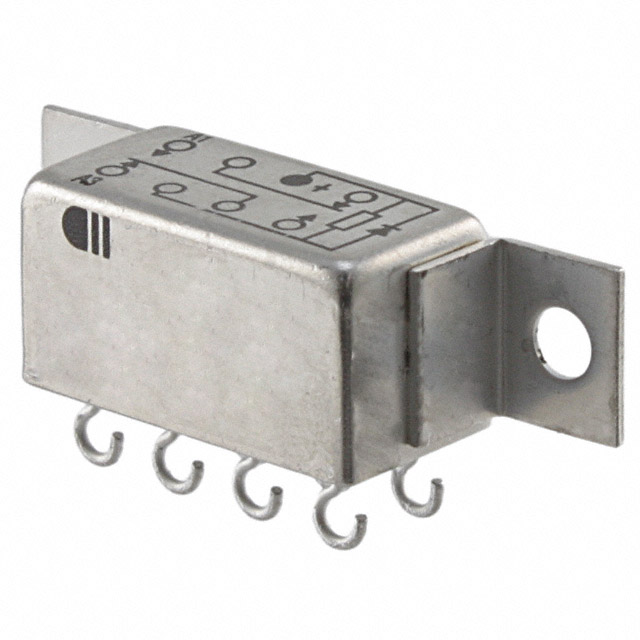

3SBC1650A2
Or copy the link below:
- Mfr.Part #
- 3SBC1650A2
- Manufacturer
- TE Connectivity Aerospace Defense and Marine
- Package / Case
- Datasheet
- Download
- Description
- RELAY GEN PURPOS DPDT 2A 26.5VDC
- Stock
- 2
- In Stock ：
- 2
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Aerospace Defense and Marine
- Product Category :
- Signal Relays, Up to 2 Amps
- Coil Type :
- Non Latching
- Length :
- 15.5mm
- Packaging :
- Bulk
- Factory Lead Time :
- 15 Weeks
- Published :
- 2011
- Relay Type :
- GENERAL PURPOSE
- Coil/Input Supply Type :
- DC
- Coil Resistance :
- 1.35kOhm
- Height :
- 8.1mm
- Pbfree Code :
- No
- Contact Current(AC)-Max :
- 2A
- Coil Voltage :
- 26.5VDC
- Current Rating :
- 2A
- Voltage - Rated DC :
- 26.5V
- Contact Form :
- DPDT (2 Form C)
- Mount :
- Panel
- RoHS Status :
- Non-RoHS Compliant
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Lead Free :
- Contains Lead
- Depth :
- 7.8mm
- Seal Rating :
- Sealed - Hermetically
- Termination :
- Solder
- ECCN Code :
- EAR99
- Relay Action :
- Momentary
- Power Consumption :
- 520mW
- Switching Voltage :
- 28VDC - Nom
- Throw Configuration :
- DPDT
- Series :
- Military, MIL-R-39016/37, 3SBC, CII
- Coil Current :
- 19.6mA
- Max Current Rating :
- 2A
- Sealing :
- Hermetically Sealed
- Number of Pins :
- 8
- Additional Feature :
- WITH COIL SUPPRESSION DIODE
- Termination Style :
- Solder Hook
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Coil Power :
- 520mW
- Contact Current(DC)-Max :
- 2A
- Coil Voltage (DC) :
- 26.5V
- Operating Temperature :
- -65°C~125°C
- Mounting Type :
- Chassis Mount
- Contact/Output Supply Type :
- AC/DC
- Datasheets
- 3SBC1650A2
