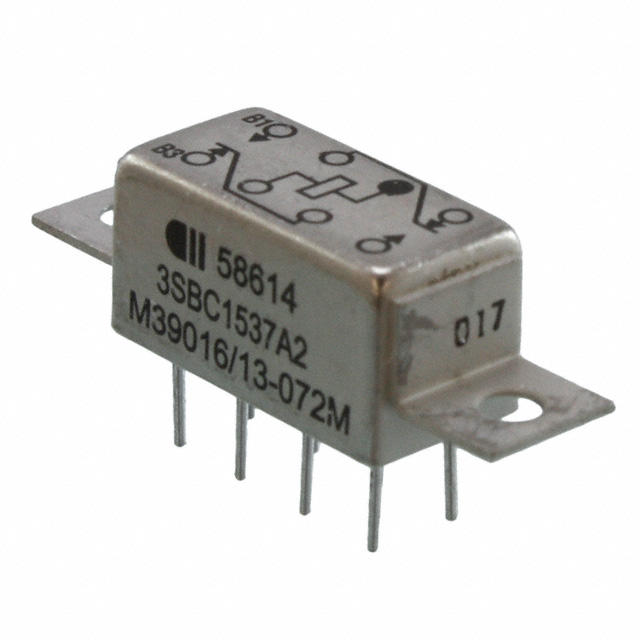

3SBC1537A2
Or copy the link below:
- Mfr.Part #
- 3SBC1537A2
- Manufacturer
- TE Connectivity Aerospace Defense and Marine
- Package / Case
- Datasheet
- Download
- Description
- RELAY GEN PURPOS DPDT 2A 26.5VDC
- Stock
- 2
- In Stock ：
- 2
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Aerospace Defense and Marine
- Product Category :
- Signal Relays, Up to 2 Amps
- Termination :
- PC Pins
- Contact Rating (Current) :
- 2A
- Coil Current :
- 19.6mA
- Mounting Type :
- Chassis Mount
- Must Operate Voltage :
- 13.5VDC
- Coil Type :
- Non Latching
- REACH SVHC :
- Unknown
- Min Operating Temperature :
- -65°C
- Length :
- 26.98mm
- Lead Free :
- Contains Lead
- Factory Lead Time :
- 22 Weeks
- Release Time :
- 4ms
- Max Voltage Rating (DC) :
- 28V
- Relay Type :
- GENERAL PURPOSE
- Contact Form :
- DPDT (2 Form C)
- Mount :
- Chassis Mount
- Termination Style :
- PC Pin
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Max Operating Temperature :
- 125°C
- Published :
- 2000
- Throw Configuration :
- DPDT
- Number of Pins :
- 8
- Current Rating :
- 2A
- Operate Time :
- 4ms
- RoHS Status :
- Non-RoHS Compliant
- Packaging :
- Bulk
- Height :
- 8.2mm
- Width :
- 15.5mm
- Coil Resistance :
- 1.35kOhms
- Must Release Voltage :
- 1.5VDC
- Coil Voltage (DC) :
- 26.5V
- Coil Voltage :
- 26.5VDC
- Operating Temperature :
- -65°C~125°C
- Seal Rating :
- Sealed - Hermetically
- Switching Voltage :
- 28VDC - Nom
- Series :
- Military, MIL-R-39016/13, 3SBC, CII
- Coil Power :
- 520mW
- Max Current Rating :
- 2A
- Datasheets
- 3SBC1537A2
