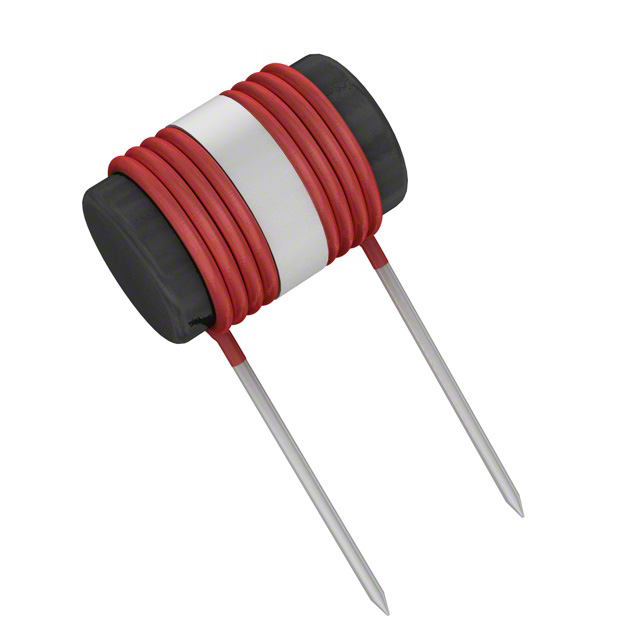

3HC-5
Or copy the link below:
- Mfr.Part #
- 3HC-5
- Manufacturer
- API Delevan
- Package / Case
- Radial, Horizontal Cylinder (Open)
- Datasheet
- Download
- Description
- FIXED IND 5UH 3A 15 MOHM TH
- Stock
- 35,170
- In Stock ：
- 35,170
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- API Delevan
- Product Category :
- Fixed Inductors
- JESD-609 Code :
- e0
- Inductance Frequency - Test :
- 1kHz
- Size / Dimension :
- 0.625Diax0.875L 15.88mmx22.23mm
- ECCN Code :
- EAR99
- Factory Lead Time :
- 7 Weeks
- Material - Core :
- Ferrite
- Packaging :
- Bulk
- Pbfree Code :
- No
- Mount :
- Through Hole
- DC Resistance (DCR) :
- 15mOhm Max
- Inductance :
- 5μH
- Termination :
- Radial
- Construction :
- Cylindrical
- Terminal Finish :
- Tin/Lead (Sn/Pb)
- HTS Code :
- 8504.50.80.00
- Mounting Type :
- Through Hole
- Radiation Hardening :
- No
- Tolerance :
- ±10%
- RoHS Status :
- Non-RoHS Compliant
- Number of Terminations :
- 2
- Current - Saturation :
- 19A
- Current Rating :
- 3A
- Series :
- HC
- Inductor Application :
- POWER INDUCTOR
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Package / Case :
- Radial, Horizontal Cylinder (Open)
- Lead Pitch :
- 12.7mm
- Type :
- Wirewound
- Max DC Current :
- 3A
- Published :
- 2010
- Number of Functions :
- 1
- Shielding :
- Unshielded
- Lead Length :
- 25.4mm
- Shape/Size Description :
- CYLINDRICAL PACKAGE
- Diameter :
- 15.88mm
- Test Frequency :
- 1kHz
- Datasheets
- 3HC-5
