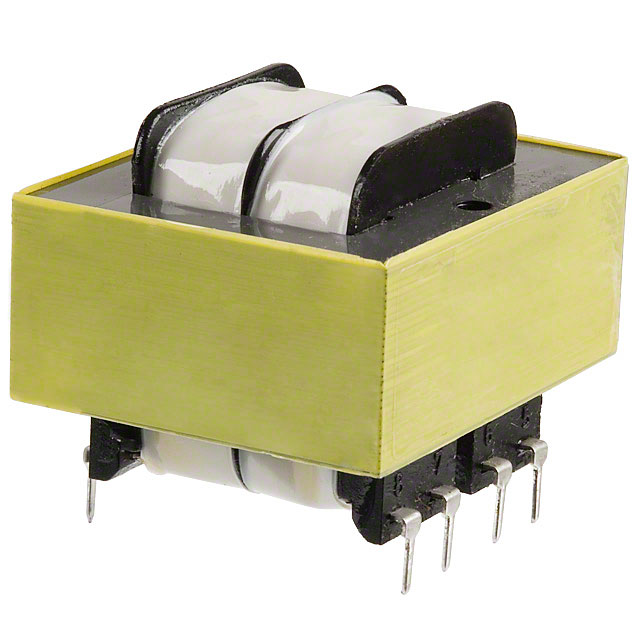

3FS-556

Manufacturer :

Tamura

Product Category :

Power Transformers

Center Tap :

No

Voltage - Secondary (Full Load) :

Parallel 28V Series 56V

Height :

38.1mm

Voltage - Isolation :

2500Vrms

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Power Rating :

12W

RoHS Status :

RoHS Compliant

Mounting Type :

Through Hole

Series :

3FS-5xx

Weight :

318g

Termination :

PC Pin

Mount :

Through Hole

Height Seated (Max) :

38.00mm

Power - Max :

12VA

Termination Style :

PC Pin

Lead Free :

Lead Free

HTS Code :

8504.31.40.35

Voltage - Primary :

115V

Packaging :

Bulk

Current - Output (Max) :

Parallel 200mA Series 100mA

Max Output Current :

100mA

Published :

2006

Number of Pins :

6

Factory Lead Time :

24 Weeks

ECCN Code :

EAR99

Max Power Dissipation :

12W

Additional Feature :

PCB MOUNTABLE

Size / Dimension :

48.50mm Lx41.52mm W

Approval Agency :

UL; CSA

VA Rating :

12 VA

Type :

Laminated Core

Primary Winding(s) :

Single

Secondary Winding(s) :

Dual
