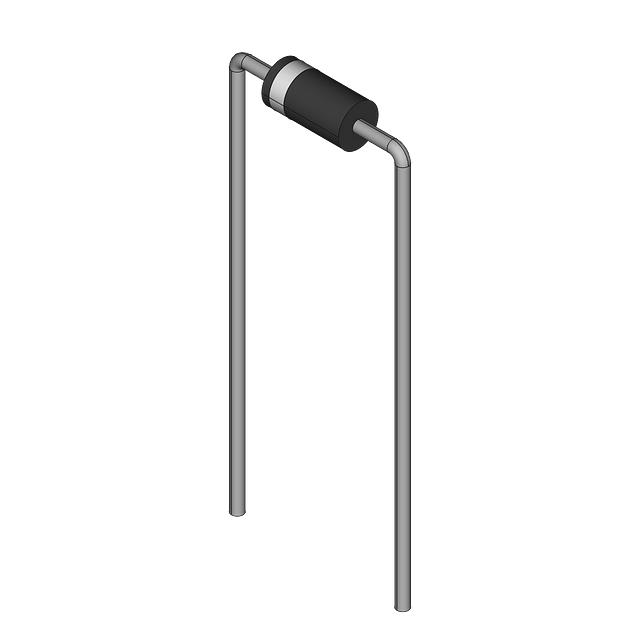

3EZ13D5

Manufacturer :

onsemi

Product Category :

Diodes - Zener - Single

Operating Temperature :

-65°C~200°C

Polarity :

Unidirectional

Qualification Status :

COMMERCIAL

Power Dissipation-Max :

1W

Surface Mount :

No

Pin Count :

2

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Time@Peak Reflow Temperature-Max (s) :

40

Number of Elements :

1

Reference Voltage :

13V

Current - Reverse Leakage @ Vr :

500nA @ 9.9V

RoHS Status :

ROHS3 Compliant

Number of Terminations :

2

Power - Max :

3W

Pbfree Code :

yes

Case Connection :

Isolated

Mounting Type :

Through Hole

Voltage - Zener (Nom) (Vz) :

13V

Terminal Finish :

MATTE TIN

Terminal Form :

Wire

Peak Reflow Temperature (Cel) :

260

Voltage - Forward (Vf) (Max) @ If :

1.5V @ 200mA

Packaging :

Bulk

Voltage Tol-Max :

5%

Diode Element Material :

SILICON

Package / Case :

DO-204AL, DO-41, Axial

Configuration :

Single

Working Test Current :

58mA

Impedance-Max :

4.5Ohm

JESD-609 Code :

e3

Tolerance :

±5%

JESD-30 Code :

O-PALF-W2

Diode Type :

ZENER DIODE
