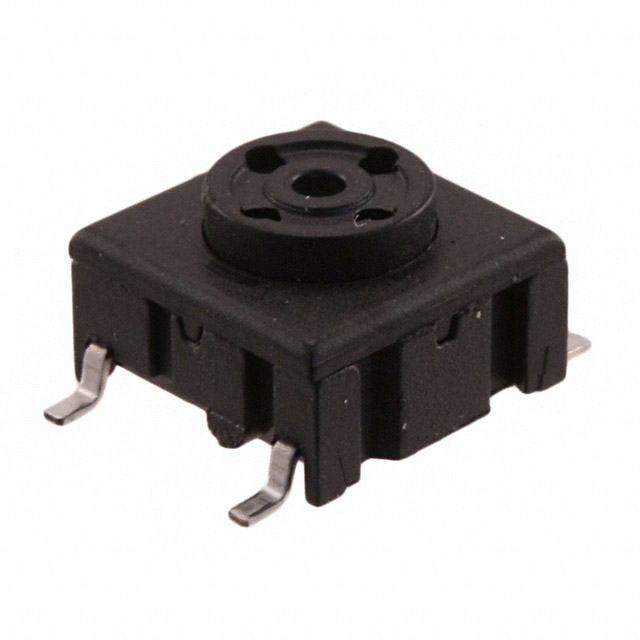

3ESH9
Or copy the link below:
- Mfr.Part #
- 3ESH9
- Manufacturer
- MEC switches
- Package / Case
- Datasheet
- Download
- Description
- SWITCH TACTILE SPST-NO 0.05A 24V
- Stock
- 10,483
- In Stock ：
- 10,483
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- MEC switches
- Product Category :
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Series :
- Multimec® 3
- Termination :
- Gull wing
- Switch Travel :
- 1.00mm
- Contact Resistance :
- 30mOhm
- Mount :
- Surface Mount
- Throw Configuration :
- SPST
- Body Breadth :
- 10.1 mm
- Published :
- 2006
- Outline :
- 10.10mm x 10.10mm
- Electrical Life :
- 10000000 Cycle(s)
- Material :
- Plastic
- Operating Force :
- 300gf
- Contact (DC) Max Rating R Load :
- .05A@24VDC
- Contact Rating @ Voltage :
- 0.05A @ 24VDC
- Sealing :
- IP67; MOISTURE PROOF
- Mounting Type :
- Surface Mount
- Packaging :
- Tube
- Feature :
- Sealed - Flux Protection
- Ratings :
- Dust Tight, IP67, Waterproof
- Packing Method :
- TR
- Current Rating :
- 50mA
- Contact Material :
- Silver
- Mechanical Life :
- 10,000,000 Cycles
- Color :
- Black
- Operating Temperature :
- -40°C~160°C
- Body Height :
- 5.1mm
- Body Length or Diameter :
- 10.1mm
- Illumination :
- Non-Illuminated
- Circuit :
- SPST-NO
- Ingress Protection :
- IP67 - Dust Tight, Waterproof
- Actuator Type :
- Plunger for Cap
- Switch Function :
- Off-Mom
- Number of Switches :
- 1
- Switch Type :
- KEYPAD SWITCH
- Termination Style :
- Gull wing
- Factory Lead Time :
- 29 Weeks
- Contact Current(DC)-Max :
- 0.05A
- Actuator Material :
- Polyphenylene Sulfide (PPS)
- Actuator Orientation :
- Top Actuated
- Contact Current Rating :
- 50mA
- RoHS Status :
- ROHS3 Compliant
- Contact Bounce Time-Max :
- 2ms
- Datasheets
- 3ESH9
3ESH9 Documents
3ESH9 datasheet pdf and Tactile Switches product details from MEC Switches stock available at
