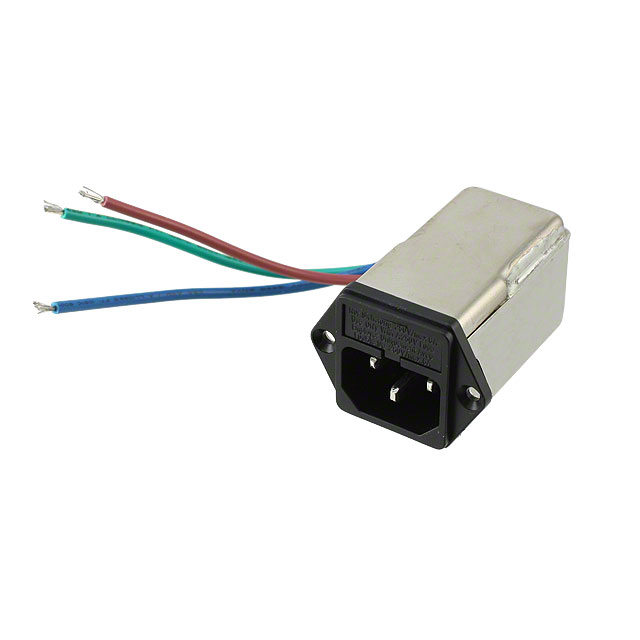

3EGG8-1
- Mfr.Part #
- 3EGG8-1
- Manufacturer
- TE Connectivity Corcom Filters
- Package / Case
- Datasheet
- Download
- Description
- PWR ENT MOD RCPT IEC320-C14 PNL
- Stock
- 107
- In Stock :
- 107
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Corcom Filters
- Product Category :
- Power Entry Modules (PEM)
- Current - IEC :
- 3A
- Option :
- GENERAL PURPOSE
- DIN Conformance :
- No
- Brand Name :
- CII
- Product Category :
- AC Power Entry Modules
- Material Flammability Rating :
- --
- Additional Feature :
- STANDARDS: UL, CSA, VDE
- MIL Conformance :
- No
- Total Number of Contacts :
- 3
- Voltage - IEC :
- 120/250VAC
- Type :
- EMI/RFI Filtered
- Body Orientation :
- Straight
- Compliance :
- UL
- Contact Gender :
- Male
- Panel Thickness :
- --
- Termination :
- Wire Leads
- Fuse Holder, Drawer :
- Fuse Holder
- Subcategory :
- Power Entry
- Contact Material :
- NOT SPECIFIED
- Termination Style :
- Faston
- Connector Style :
- IEC 320-C14
- Mounting :
- Flange Mount
- Current - UL :
- --
- Current Rating (Max) :
- 3(A)
- Packaging :
- Bulk
- Termination Type :
- Wire Wrap
- Product :
- Inlets
- Fuse :
- yes
- Mains Connector Rating :
- 3A, 250VAC
- Approvals :
- CSA, UL, VDE
- Base Product Number :
- 3EGG
- Termination Method :
- Faston
- Mounting Type :
- Panel
- Coupling Type :
- Snap
- Mounting Style :
- Flange
- Accomodates a Fuse :
- Yes (Fuse Not Included)
- Ingress Protection :
- --
- RoHS :
- Details
- Brand :
- TE Connectivity / Corcom
- Current Rating :
- 3 A
- Filter Type :
- Filtered (EMI, RFI) - Commercial
- Voltage Rating :
- 250 VAC
- Approval Agency :
- CSA, UL, VDE
- Series :
- GG, Corcom
- Factory Lead Time :
- 15 Weeks
- Features :
- --
- Product Length (mm) :
- 44.7(mm)
- Number of Ports :
- 1(Port)
- Voltage Rating Max :
- 250
- Switch Features :
- --
- Additional Hardware :
- Fuse
- Package :
- Bulk
- Number of Positions :
- 3
- Reach Compliance Code :
- Compliant
- Product Length :
- 44.7 mm
- Gender :
- PLUG
- Voltage - UL :
- --
- Product Status :
- Active
- Panel Cutout Dimensions :
- Rectangular - 28.96mm x 33.02mm
- Connector Type :
- MAINS POWER CONNECTOR
- Product Height (mm) :
- 32.8(mm)
- Product Type :
- AC Power Entry Modules
- Switch Function :
- Not Switched
- IEC Conformance :
- No
- Datasheets
- 3EGG8-1
