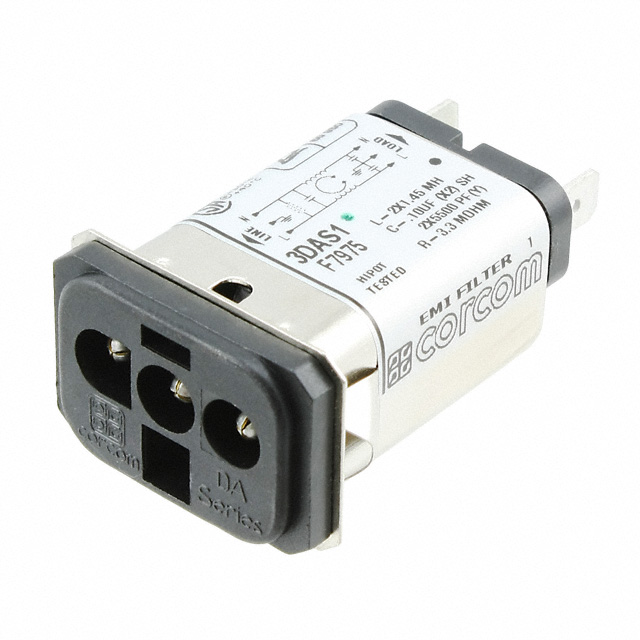

3DAS1

Or copy the link below:

Mfr.Part #: 3DAS1

Manufacturer: TE Connectivity Corcom Filters

Package / Case: Module

Datasheet: Download

Description: PWR ENT RCPT PANEL QC

Stock: 45,814

In Stock ：: 45,814

Request A Quote(RFQ)

* Fullname:

* Company:

* E-Mail:

Phone:

Comment:

* Quantity:

Manufacturer :: TE Connectivity Corcom Filters
Product Category :: Power Line Filter Modules

RoHS Status :: RoHS Compliant

Min Operating Temperature :: -10°C

Total Number of Contacts :: 3

Max Operating Temperature :: 40°C

Approval Agency :: CSA, UL, VDE

Moisture Sensitivity Level (MSL) :: 1 (Unlimited)

Termination :: Quick Connect - 0.250 (6.3mm)

Published :: 2009

Frequency :: 200MHz

Current :: 3A

Filter Type :: Filtered (EMI, RFI) - Commercial

Connector Style :: Custom Connection

Number of Ports :: 1

Mounting Type :: Panel Mount, Snap-In

Lifecycle Status :: ACTIVE (Last Updated: 5 days ago)

Additional Feature :: STANDARDS: UL, CSA, TUV

Connector Type :: Receptacle, Male Pins

Number of Positions :: 3

Panel Cutout Dimensions :: Rectangular - 30.48mm x 22.86mm

Packaging :: Bulk

Accomodates a Fuse :: No

Option :: GENERAL PURPOSE

Factory Lead Time :: 4 Weeks

Panel Thickness :: 0.031 ~ 0.068 0.79mm ~ 1.73mm

Package / Case :: Module

Mating Information :: MULTIPLE MATING PARTS AVAILABLE

Lead Free :: Lead Free

Max Voltage Rating (AC) :: 125V

Mount :: Snap in

IEC Conformance :: No

Current Rating :: 3A

Series :: DA, Corcom

ELV :: Compliant

Voltage - UL :: 125VDC

Voltage - Rated DC :: 125V

MIL Conformance :: No

Orientation :: Straight

DIN Conformance :: No

Datasheets: 3DAS1

3DAS1 Documents

Introducing Power Line Filter Modules TE Connectivity Corcom Filters 3DAS1 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type：Panel Mount, Snap-In, Package / Case：Module, 3DAS1 pinout, 3DAS1 datasheet PDF, 3DAS1 amp .Beyond Power Line Filter Modules TE Connectivity Corcom Filters 3DAS1 ,we also offer FN2030-6-06, FN2020-6-06, FN2020-12-06, Our vast inventory has you covered. Contact us now for immediate solutions.

3DAS1 datasheet pdf and Power Entry Connectors - Inlets, Outlets, Modules product details from TE Connectivity Corcom Filters stock available at
