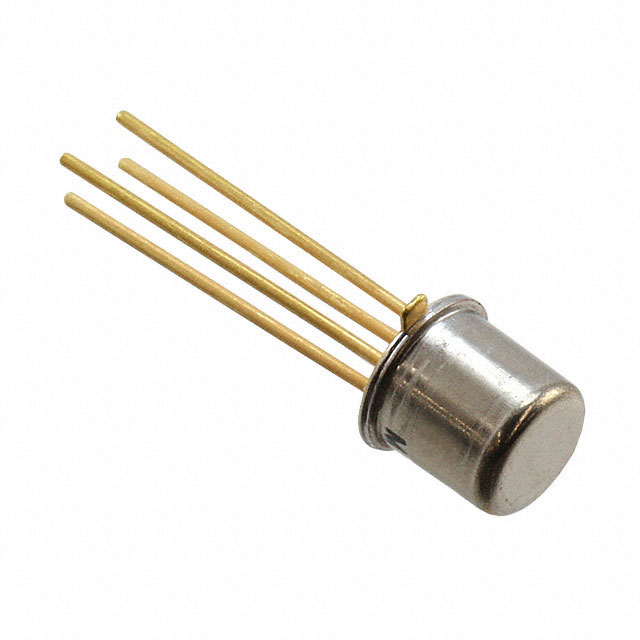

3C91CTX

Manufacturer :

TT Electronics

Product Category :

Optoisolators - Transistor, Photovoltaic Output

Voltage - Isolation :

1000VDC

Current Transfer Ratio (Max) :

200% @ 10mA

Current - DC Forward (If) (Max) :

50mA

Max Output Voltage :

50V

Operating Temperature :

-55°C~125°C

Output Type :

Transistor

Forward Voltage :

1.2V

RoHS Status :

Non-RoHS Compliant

Collector Emitter Voltage (VCEO) :

400mV

Voltage - Forward (Vf) (Typ) :

1.2V Max

Max Operating Temperature :

125°C

Supplier Device Package :

TO-72-4

Voltage - Output (Max) :

50V

Published :

2015

Current Transfer Ratio (Min) :

30% @ 10mA

Output Current per Channel :

30mA

Package / Case :

TO-206AF, TO-72-4 Metal Can

Turn On / Turn Off Time (Typ) :

9μs, 6μs (Max)

Input Type :

DC

Mounting Type :

Through Hole

Min Operating Temperature :

-55°C

Packaging :

Bulk

Current - Output / Channel :

30mA

Mount :

Through Hole

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Vce Saturation (Max) :

400mV

Factory Lead Time :

10 Weeks

Number of Channels :

1
