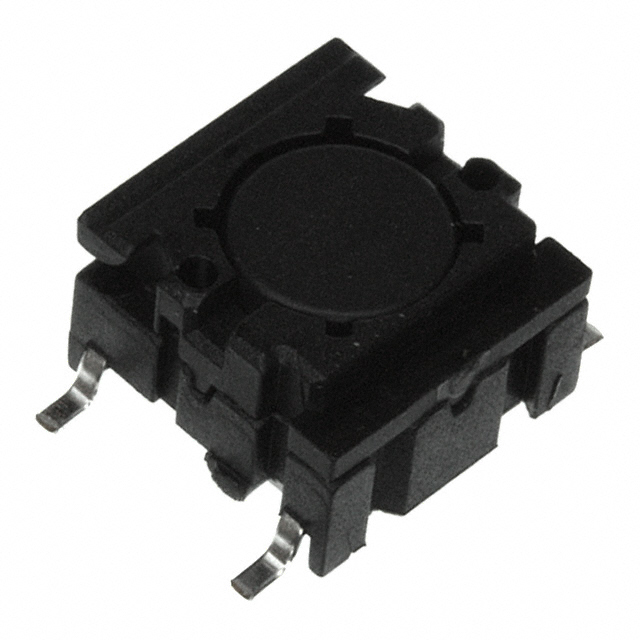

3ASH9

Manufacturer :

MEC switches

Product Category :

Series :

3A

Actuator :

Round

Color :

Black

Current Rating :

50 mA

Max Voltage Rating (DC) :

24 V

IP Rating :

IP67

Contact Form :

SPST

Tradename :

multimec

Lamp Type :

-

Illumination Type :

Not Required

Mounting Style :

SMD/SMT

Illumination Color :

-

Throw Configuration :

SPST

RoHS :

Details

Operating Temperature Range :

- 40 C to + 160 C

Operating Temp Range :

-40C to 160C

Max Operating Temperature :

160 °C

Switch Function :

OFF - (ON)

Itar Registered :

No

Product Length (mm) :

15.1(mm)

Product Depth (mm) :

15.1(mm)

Actuator Style :

Button

Orientation :

Straight

Current Rating (Max) :

0.05(A)

Type :

Cap

Power Rating :

-

Body Orientation :

Straight

Operating Force :

3.5 N

Terminal Type :

Gull wing

Travel :

1 mm

Maximum Operating Temperature :

+ 160 C

Min Operating Temperature :

-40 °C

Switch Function Configuration :

OFF Mom

ECCN :

EAR99

Voltage Rating (VDC) :

24(V)

Mechanical Life :

10000000

Termination Style :

Gull Wing Lead

Minimum Operating Temperature :

- 40 C

Height :

6.4 mm

Mount :

Surface Mount

Pole Throw Configuration :

SPST
