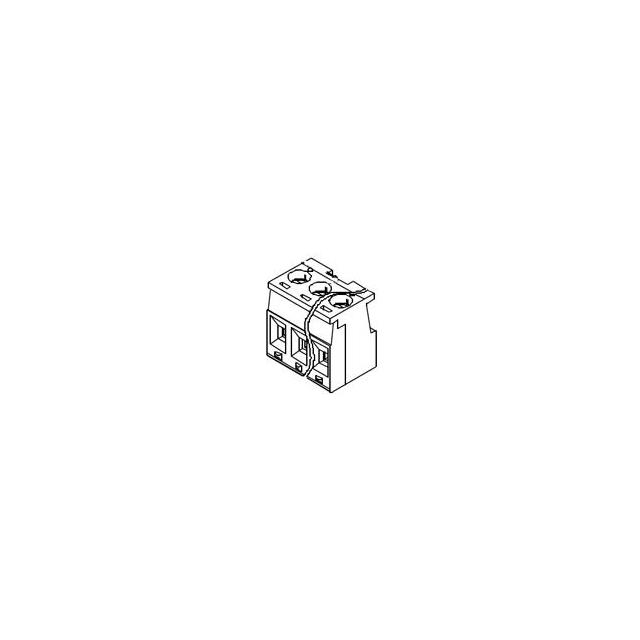

39980-0309

Manufacturer :

Molex

Product Category :

Headers, Plugs and Sockets

Number of Ways :

9

Product Length (mm) :

46.18(mm)

Body Orientation :

Straight

Manufacturer :

Molex

HTS Code :

8536.69.40.40

Type :

Eurostyle Block

Number of Contacts :

9(POS)

Termination Method :

Screw

Operating Voltage (Max) :

300V

Safety Approval :

UL

Number of Rows :

1

Series :

*

Mounting Type :

CABLE

Fastening Method :

Screw

Number of Decks :

1

Rated Voltage :

300 V

Reach Compliance Code :

Compliant

Pbfree Code :

yes

ECCN Code :

EAR99

Package :

Box

Additional Feature :

LATCHED, POLARIZED, POLYAMIDE, 94V-0

Gender :

F

Mounting Style :

CABLE

Current Rating (Max) :

10/Contact(A)

Number of Contact Rows :

1

Wire Cross Section :

2.5 mm2

Product Status :

Active

Wire Gauge :

12-24(AWG)

Rated Current :

10 A

Product Height (mm) :

15.75(mm)

Product Depth (mm) :

14.22(mm)

Terminal and Terminal Block Type :

MODULAR TERMINAL BLOCK

Rad Hardened :

No

Contact Plating :

Tin/Zinc Chromate

Contact Pitch (mm) :

5.08(mm)

Housing Color :

Black

Housing Material :

Polyamide 6/6
