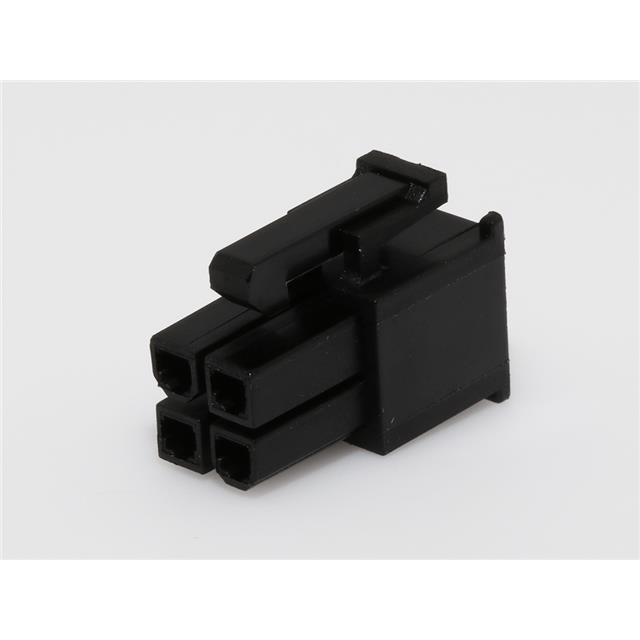

39-03-9042

Manufacturer :

Molex

Product Category :

Unclassified

Lifecycle Status :

Production (Last Updated: 2 years ago)

Length :

9.6 mm

Mounting Style :

Cable Mount / Free Hanging

Mounting :

Cable Mount

Contact Material :

-

Color :

Black

Number of Contact Rows :

2

Type :

Housing

Termination :

Crimp

Packaging :

Bag-packed

Country of Origin :

US

Product Height (mm) :

19.6(mm)

Row Spacing :

4.2 mm

Current Rating :

13 A

Operating Temp Range :

-40C to 105C

Wire Gauge :

16-24(AWG)

Base/Housing Material :

Nylon 66

Manufacturer :

Molex

Housing Material :

Nylon

Current Rating (Max) :

13/Contact(A)

Maximum Operating Temperature :

+ 105 C

Connector Type :

Socket

Pitch (mm) :

4.2(mm)

Number of Rows :

2

Flammability Rating :

UL94 V-0

Application :

Power, Wire-to-Board, Wire-to-Wire

Subcategory :

Headers and Wire Housings

Body Orientation :

Straight

Product Length (mm) :

9.6(mm)

Wire/Cable Gauge :

16 AWG

Accessory Type :

-

Housing Color :

Black

Gender :

RCP

Contact Type :

Socket

RoHS :

Compliant

Minimum Operating Temperature :

- 40 C

Mount :

CABLE

Pitch :

4.2000 mm

Product Type :

Headers and Wire Housings

Product Category :

Headers and Wire Housings

Tradename :

Mini-Fit Jr.

Product Length :

9.6 mm

Orientation :

Straight

Brand :

Molex

Number of Contacts :

4(POS)

Product Depth (mm) :

19.6(mm)

Max Operating Temperature :

105 °C

Series :

5557

Operating Temperature :

-40 to 105 °C

Number of Positions :

4

Voltage Rating Max :

600VDC/600VAC

Min Operating Temperature :

-40 °C

Product :

Wire Housings

RoHS Status :

RoHS Compliant

Termination Style :

Crimp

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 2 years ago)

For Use With :

Molex Mini-Fit 5556 Socket Contacts, Mini-Fit Plus 45750 HCS, Mini-Fit Pre-Crimped Leads

Number of Pins :

4

Contact Gender :

Socket (Female)

Housing Gender :

FEMALE
