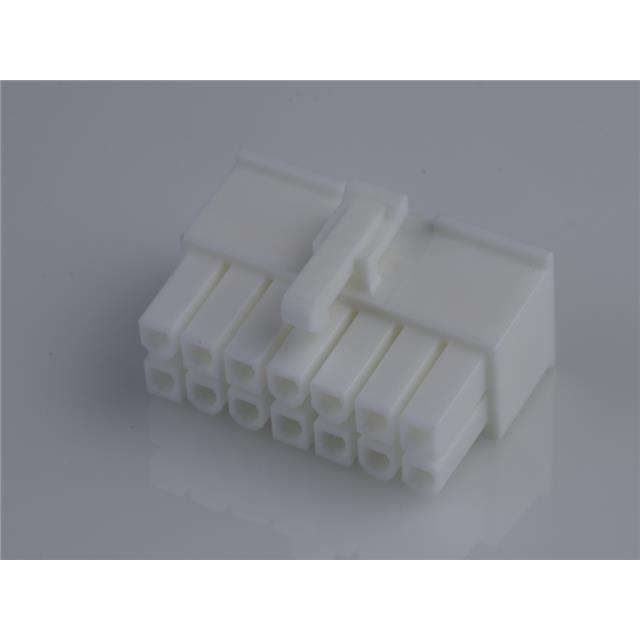

39-01-2145

Manufacturer :

Molex

Product Category :

Rectangular Connector Housings

RoHS Status :

RoHS Compliant

Number of Contacts :

14(POS)

Color :

Brown

Product Height (mm) :

19.6(mm)

Current Rating (Max) :

13/Contact(A)

Product Depth (mm) :

10.7(mm)

Body Orientation :

Straight

Width :

15.1mm

Operating Temperature :

-40 to 105 °C

Wire Gauge :

16-24(AWG)

Series :

Mini-Fit Jr

Pitch :

0.165" 4.20mm

Panel Mount :

No

Housing Material :

Nylon 6/6

For Use With :

Molex Mini-Fit Jr. 5556 and Mini-Fit Plus HCS 45750 Series Socket Contacts

Housing Color :

Ivory

Number of Rows :

2

Application :

Power

Packaging :

Bag-packed

Circuit Size :

14

Mounting Type :

Cable Mount

Gender :

Male

Voltage Rating Max :

600VDC/600VAC

Type :

Housing

Number of Contact Rows :

2

Product Length (mm) :

30.6(mm)

Row Spacing :

0.165"(4.20mm)

Operating Temp Range :

-40C to 105C

Length :

30.6mm

Product Length :

30.6 mm

Base/Housing Material :

Nylon 66

Pitch (mm) :

4.2(mm)
