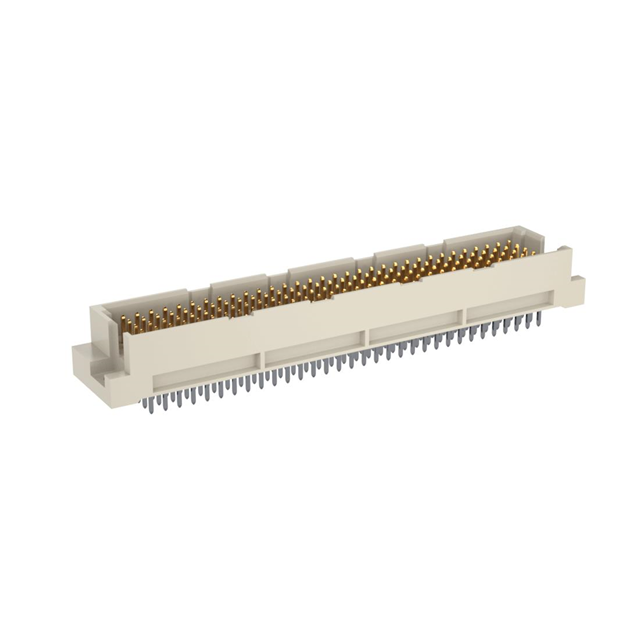

374472

Manufacturer :

TE Connectivity

Product Category :

DIN 41612

Mounting Type :

BOARD

HTS Code :

8536.69.40.40

PCB Contact Pattern :

RECTANGULAR

Filter Feature :

No

Contact Gender :

Male

Insulation Resistance :

10000000000 Ω

Durability :

400 Cycles

Gender :

M

MIL Conformance :

No

Mating Contact Row Spacing :

0.1 inch

Mounting Option 1 :

LOCKING

Additional Feature :

RoHS Compliant

Type :

Backplane

Body Depth :

0.457 inch

Product Height (mm) :

11.6(mm)

Body/Shell Style :

Receptacle

Termination Type :

Solder

Subcategory :

Headers and Edge Type Connectors

DIN Conformance :

yes

Body Breadth :

0.638 inch

Mating Contact Pitch :

0.1 inch

PCB Contact Row Spacing :

2.54 mm

Reliability :

COMMERCIAL

Polarization Key :

POLARIZED HOUSING

Manufacturer :

ERNI

Reference Standard :

UL, CSA

Product Length (mm) :

95(mm)

Terminal Length :

0.157 inch

Name of Rows Loaded :

A,B,C,D,E

Body Orientation :

Straight

ECCN Code :

EAR99

Termination Method :

Solder

Contact Material :

NOT SPECIFIED

Number Of PCB Rows :

5

Connector Type :

BOARD EURO CONNECTOR

Terminal Pitch :

2.54 mm

Total Number of Contacts :

160

Contact Style :

SQ PIN-SKT

Mounting Style :

Through Hole

Rated Current (Signal) :

2 A

Reach Compliance Code :

Compliant

Number of Contact Rows :

5

Product Depth (mm) :

16.2(mm)

Mixed Contacts :

No

Option :

GENERAL PURPOSE

Pitch (mm) :

2.54(mm)

Number of Contacts :

160(POS)

Insertion Force-Max :

.6672 N

Contact Resistance :

20 mΩ

IEC Conformance :

No

Dielectric Withstanding Voltage :

1400VAC V
