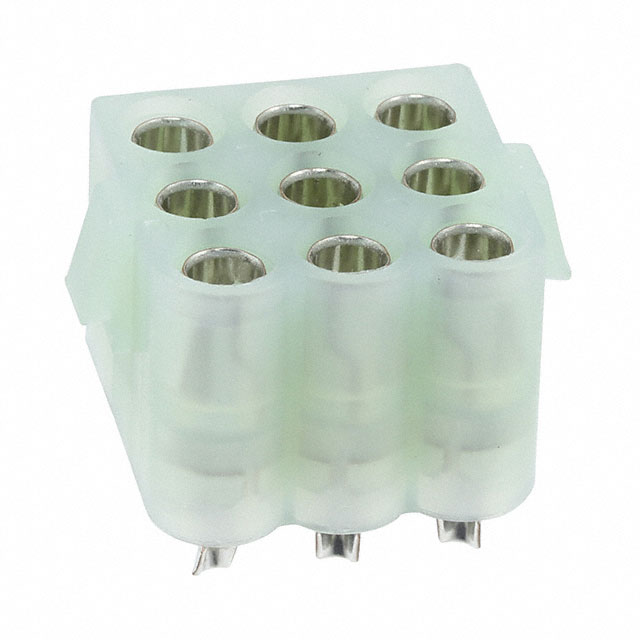

365046-1
Or copy the link below:
- Mfr.Part #
- 365046-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HDR 9POS 0.24 TIN PCB
- Stock
- 721
- In Stock ：
- 721
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Receptacles, Female Sockets
- PCB Mounting Orientation :
- Vertical
- Contact Length - Post :
- 0.161 4.09mm
- Approval Agency :
- CSA
- Empty Shell :
- yes
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Series :
- MATE-N-LOK
- Published :
- 2008
- Contact Retention :
- Without
- Depth :
- 19.2mm
- Contact Material :
- COPPER ALLOY
- Mixed Contacts :
- No
- Row Spacing - Mating :
- 0.240 (6.10mm)
- Pbfree Code :
- yes
- Operating Temperature :
- -55°C~105°C
- Pitch - Mating :
- 0.240 6.10mm
- Sealable :
- No
- Number of Positions Loaded :
- All
- JESD-609 Code :
- e3
- Operating Supply Voltage :
- 250V
- Shell Material :
- POLYAMIDE66
- Style :
- Board to Cable/Wire
- Termination :
- Solder
- Connector Type :
- Header
- Packaging :
- Bulk
- Number of Rows :
- 3
- Plating Thickness :
- 2.54μm
- DIN Conformance :
- No
- Contact Current Rating :
- 17A
- Filter Feature :
- No
- PCB Thickness :
- 1.57mm
- Height :
- 18.6mm
- Panel Thickness :
- 2.286mm
- RoHS Status :
- RoHS Compliant
- Width :
- 19.177mm
- Mount :
- Through Hole
- IEC Conformance :
- No
- Lead Free :
- Lead Free
- Insulation Height :
- 0.571 14.50mm
- Material Flammability Rating :
- UL94 V-2
- Orientation :
- Straight
- Option :
- GENERAL PURPOSE
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Gender :
- Male
- Circuit Application :
- Power
- Fastening Type :
- Locking Ramp
- Mounting Type :
- Through Hole
- Length :
- 19.2mm
- Contact Type :
- Female Socket
- Voltage - Rated :
- 250V
- REACH SVHC :
- No SVHC
- Insulation Color :
- Natural
- Housing Material :
- Nylon
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Flammability Rating :
- UL94 V-2
- MIL Conformance :
- No
- Factory Lead Time :
- 18 Weeks
- Current Rating :
- 15A
- Contact Shape :
- Circular
- Max Voltage Rating (AC) :
- 250V
- Contact Finish - Mating :
- Tin
- Number of Power Positions :
- 9
- Datasheets
- 365046-1
3 Rows Header Solder Copper Alloy Through Hole Bulk Tin Polyamide (PA66), Nylon 6/6 Female Socket
365046-1 Overview
The product comes in a package of Header.Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the MATE-N-LOK Series.It is mounted by Through Hole.Its operating supply voltage is 250V.It operates at an operating temperature of -55°C~105°C.
365046-1 Features
MATE-N-LOK series
365046-1 Applications
There are a lot of TE Connectivity AMP Connectors
365046-1 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
